Electric Adhesive Paper Hot Melt & UV Coating Machine with Pump and Motor High-Accuracy Wood & Plastic Packaging

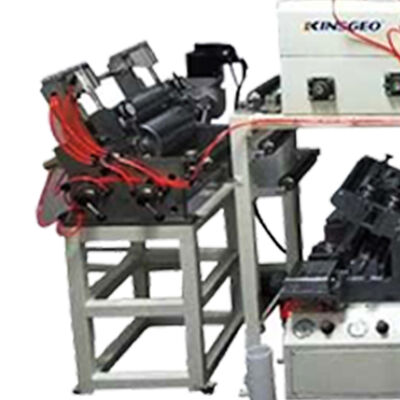

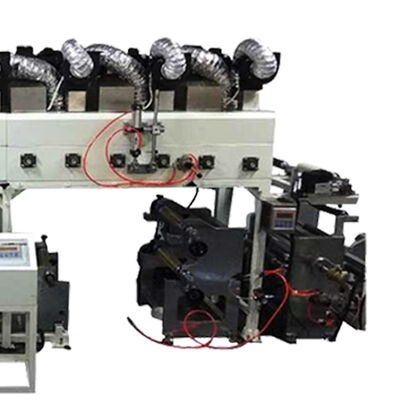

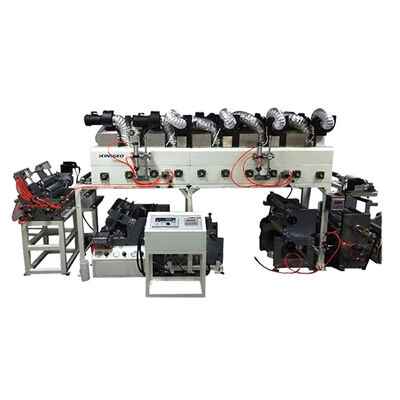

Large Image : Electric Adhesive Paper Hot Melt & UV Coating Machine with Pump and Motor High-Accuracy Wood & Plastic Packaging

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	KEJIAN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CN¥247,424.40

Contact Now

Detailed Product Description

Voltage:	220V	Dimension:	1200620550mm
Weight:	120kg	Power Source:	1 Phase, AC 220V
Power Rate:	1050W	Max Coating Width:	280mm
Coating Length:	Unlimited	Max Capacity:	150g
Min Coating Thickness:	0.05mm	Coating Speed:	4.5m/min
Max Temperature:	250℃	Coating Gap Resolution:	0.005mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Automatic Grade:	Semi-Automatic
Driven Type:	Electric
Highlight:	Electric adhesive paper coating machine , Hot melt UV coating machine for wood , High-accuracy lab coating machine

Electric Adhesive Paper Hot Melt & UV Coating Machine

Precision laboratory benchtop hot melt coater for producing coated samples or small production runs of hot melt adhesives, with laminating capabilities for various foils, films, and papers.

Laboratory Applications

Ideal for lab-scale simulations of production processes, enabling research and development sample preparation while significantly reducing R&D costs.

Key Features

Self-contained brake unwinds for adhesive carrier and facestock
Requires 110V/20A circuit and compressed air source
Pivot control for web alignment on adhesive carrier and facestock
Controllable laminating speed and pressure
Maximum operating temperature: 482°F (250°C)
Easy cleanup through quick, uncomplicated disassembly
Generates sample laminates of unlimited length
Precision ground coating bars
Independent heating for coating bars and back reservoir
Teflon insert side dams for controlled coating width
Durable aluminum and steel construction for long machine life
Adjustable variable speed controller
Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
Large diameter high-precision micrometer for coating gap adjustment (0.005mm resolution)
Maximum coating width: 280mm
Reversible speed controller with optimal coating speed: 4.5m/min
Adjustable coated liner bar for roll tension control
Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning

Technical Specifications

Maximum Coating Width	250mm
Coating Length	Unlimited
Coating Speed	Adjustable (optimal: 4.5m/min)
Dimensions	1200 × 620 × 550mm (L×W×H)
Weight	Approximately 120kg
Power Source	1 phase, AC 220V
Power Rating	1050W
