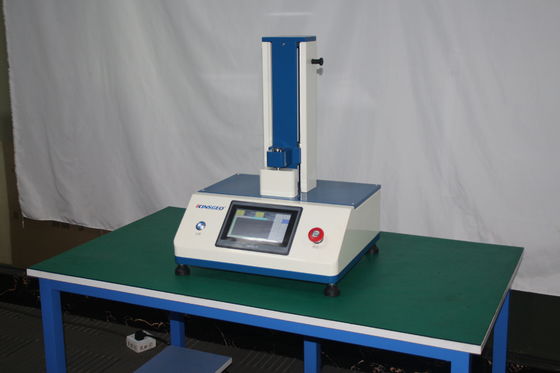

ASTM D2979 Peel Force Test Equipment , 0-100N 90 Degree Peel Test Machine

ASTM D2979 Peel Force Test Equipment , 0-100N 90 Degree Peel Test Machine
ASTM D2979 Peel Force Test Equipment , 0-100N 90 Degree Peel Test Machine

Large Image :  ASTM D2979 Peel Force Test Equipment , 0-100N 90 Degree Peel Test Machine

Product Details:
Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: KJ-6034
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 200 sets per month
Detailed Product Description
Measuring Range: 0-100N Measurement Accuracy: ±1%
Weight: About 23kg Size (H*W*D) Cm: 55*30*35cm
Testing Speed: 0.5~5,000mm/min Power: 220V, 50HZ
Highlight:

ASTM D2979 peel force test Equipment

,

90Degree peel force test Equipment

,

100N 90 degree peel test machine

ASTM D2979 0-100N Portable High Precision Initial Peel Adhesion Tester

Standard
ASTM D2979.

Usage


KJ-6034 probe method of initial adhesion test tester compact and exquisite structure, the use of imported sensors and motors, mainly used for a variety of tape, adhesive class and other different products of the initial adhesion. Products meet ASTM D2979 standard, suitable for research institutions, adhesive import and export enterprises, inspection and quarantine institutions.

Test Principle


Probe method initial adhesion instrument is the probe and the test sample, at a fixed speed after full contact (after one second of stagnation), the instrument automatically reverse and test plate at a constant speed of complete separation, the maximum force generated, the maximum force value is the test sample probe initial adhesion

Technical Parameter

Measurement Range 0-100 N
Measurement Accuracy Less than ±1% measurement error
Testing Result Record the maximum tension required for the sample to leave the probe and the failure mode of the sample
Measuring Speed 0.5-500mm/min (Adjustable)
Speed Acurracy Less than ±1% error
Probe Specification 5mm diameter flat precision grinding probe
Weight of laminating board 200g
Size (H*W*D) CM 55*30*35 CM
Weight 23KG
Power 220V, 50HZ


Software Functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
