Probe Adhesion Tester with 0-100N Measuring Range ±1% Accuracy for ASTM D2979 Initial Peel Adhesion Testing

Probe Adhesion Tester with 0-100N Measuring Range ±1% Accuracy for ASTM D2979 Initial Peel Adhesion Testing
Probe Adhesion Tester with 0-100N Measuring Range ±1% Accuracy for ASTM D2979 Initial Peel Adhesion Testing

Large Image :  Probe Adhesion Tester with 0-100N Measuring Range ±1% Accuracy for ASTM D2979 Initial Peel Adhesion Testing

Product Details:
Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: KJ-6034
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Measuring Range: 0-100N Measurement Accuracy: ±1%
Weight: About 23kg Size (H*W*D) Cm: 55*30*35cm
Testing Speed: 0.5～5,000mm/min Power: 220V, 50HZ
Highlight:

0-100N Measuring Range Peel Adhesion Tester

,

±1% Measurement Accuracy Initial Adhesion Tester

,

ASTM D2979 Standard Probe Adhesion Tester

Probe-type Adhesive Initial Adhesion Force Testing Machine
ASTM D2979 0-100N Portable High Precision Initial Peel Adhesion Tester
Standard Compliance
ASTM D2979
Application

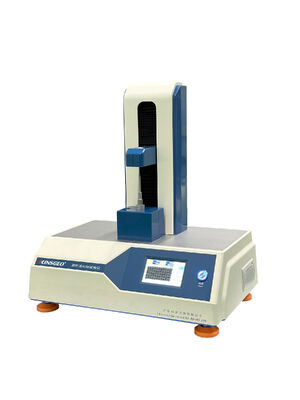

The KJ-6034 probe method initial adhesion tester features a compact and exquisite structure, utilizing imported sensors and motors. It is primarily used for testing initial adhesion of various tapes, adhesive classes, and other products. This instrument meets ASTM D2979 standards and is suitable for research institutions, adhesive import/export enterprises, and inspection/quarantine institutions.
Testing Principle
The probe method initial adhesion instrument brings the probe and test sample into contact at a fixed speed. After one second of stagnation, the instrument automatically reverses and separates from the test plate at a constant speed. The maximum force generated during separation is recorded as the initial adhesion value of the test sample.
Technical Specifications
Measurement Range 0-100 N
Measurement Accuracy Less than ±1% measurement error
Testing Result Records maximum tension required for sample separation and failure mode
Measuring Speed 0.5-500mm/min (Adjustable)
Speed Accuracy Less than ±1% error
Probe Specification 5mm diameter flat precision grinding probe
Weight of Laminating Board 200g
Dimensions (H×W×D) 55×30×35 cm
Weight 23 kg
Power Requirements 220V, 50Hz
Probe Adhesion Tester with 0-100N Measuring Range ±1% Accuracy for ASTM D2979 Initial Peel Adhesion Testing 0
Software Features
  • Windows operating platform with dialog-based parameter setting and easy operation
  • Single-screen operation without screen changes required
  • Simplified Chinese, Traditional Chinese, and English language support
  • Free test sheet mode planning
  • Real-time test data display on screen
  • Multiple curve data comparison through translation or contrast methods
  • Multiple measurement units with metric and British system switching
  • Automatic calibration function
  • User-defined test method functionality
  • Test data arithmetic analysis capabilities
  • Automatic magnification function for optimal graphics sizing
  • Testing capabilities for tensile, compression, peel, fatigue, and more
Why Choose Our Testing Machine
Considerate Service: Different country plugs, manual voltage change from 110V to 220V, insurance indicator.
Excellent After-Sales Service: 1 YEAR warranty. 24-hour response time and solution provision within 3 working days for any testing problems.
Secure Packaging: Air bubble film protection within wooden cases, providing shock absorption, impact resistance, heat sealing, and moisture corrosion protection.
KeJian Instrument Service Support
Technical Support: 48-hour response time with solutions within 3 working days. Operation videos and English manuals provided. Video conferencing available.
Onsite Services: Device installation, equipment operation test technology training, equipment calibration, daily maintenance and equipment upkeep.
Additional Benefits: Free technical training for factory visits, 24-hour online contact, free software upgrades.
Free Documentation: Product instructions, operation manuals/videos, experiment test applications and reports.
Problem Resolution: 24-hour social media communication, seamless email support, video conferencing, and complimentary on-site service.
