China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine

China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine
China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine

Large Image :  China Micropore Tape Hot Melt Coating Machine New Type Ce Newly Desktop Mini UV Coating Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: KEJIAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CN¥24,055.15
Contact Now
Detailed Product Description
Voltage: 220V Power Source: 1 Phase, AC 220V
Power Rate: 1050W Dimensions: 1200×620×550mm
Weight: 120kg Max Coating Width: 280mm
Coating Length: Unlimited Coating Speed: 4.5m/min
Max Operating Temperature: 250℃ Min Coating Thickness: 0.005mm
Max Capacity: 150g Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Automatic Grade: Semi-Automatic Driven Type: Electric
Coating Gap Resolution: 0.005mm
Highlight:

mini UV coating machine for lab

,

hot melt coating machine desktop

,

micropore tape coating machine

Precision Laboratory Hot Melt Coating Machine
This benchtop hot melt coater is designed for producing coated samples and small-scale production of hot melt adhesives, with capability to laminate to various foils, films, and papers. Ideal for R&D sample preparation and process simulation.
Primary Applications
Laboratory-scale simulations of production processes, R&D sample preparation, and small-batch production of hot melt adhesive coatings on various substrates.
Key Features & Benefits
  • Self-contained brake unwinds for adhesive carrier and facestock
  • Operates on 110V/20A circuit with compressed air source requirement
  • Pivot control for precise web alignment on both adhesive carrier and facestock
  • Adjustable laminating speed and pressure controls
  • Maximum operating temperature of 482°F (250°C)
  • Easy cleanup through quick, uncomplicated disassembly
  • Generates sample laminates of unlimited length
  • Precision ground coating bars with independent heating
  • Coating width controlled by Teflon insert side dams
  • Durable aluminum and steel construction for long service life
  • Variable speed controller with reversible operation
  • Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
  • High-precision micrometer for coating gap adjustment (0.005mm resolution)
  • Grating scale displays coating thickness in real-time
  • Automatic winding capability for unlimited length tape production
  • Adjustable roll tension via coated liner bar control
  • Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning
Technical Specifications
Maximum Coating Width 250mm
Coating Length Unlimited
Coating Speed Adjustable, optimal at 4.5m/min
Dimensions (L×W×H) 1200×620×550mm
Weight Approximately 120kg
Power Source 1 phase, AC 220V
Power Rating 1050W
Product Images

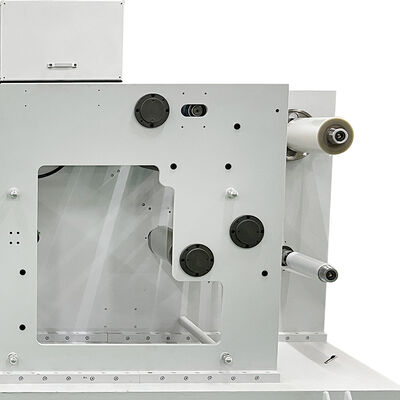

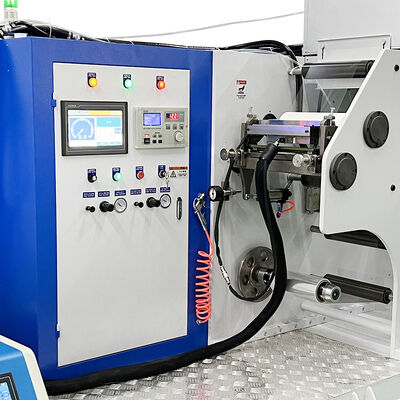

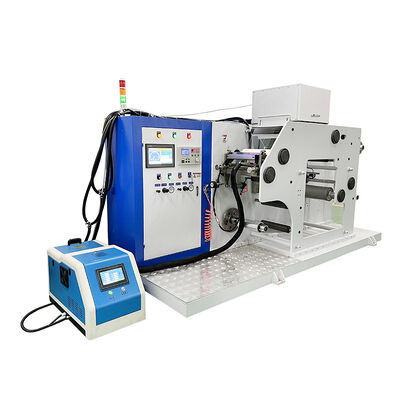

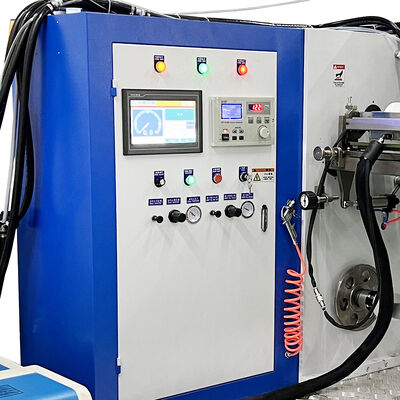

Precision laboratory hot melt coating machine front view Hot melt coater control panel and operating components Coating mechanism and precision adjustment features
Company Commitment
Manufacturing facility and quality control processes
Packaging & Delivery
Secure packaging and shipping preparation
Service & Support
Comprehensive Warranty & Support
  • Warranty: One-year free warranty covering all machine components (excludes improper operation or intentional damage)
  • Training: On-site engineer training during installation and commissioning until proper operation is achieved
  • Certification: Complimentary provision of related certificates upon client request
  • Maintenance: 48-hour response guarantee for technical questions or malfunction resolution
Contact Our Technical Team
For detailed specifications, custom requirements, or additional information, please contact our technical specialists for personalized assistance.
