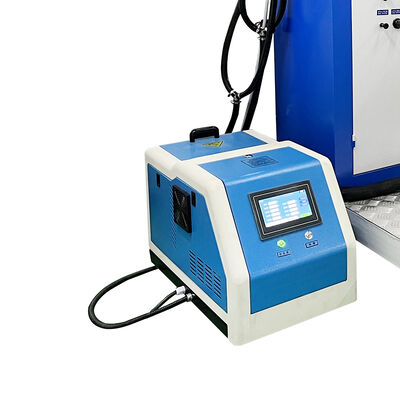

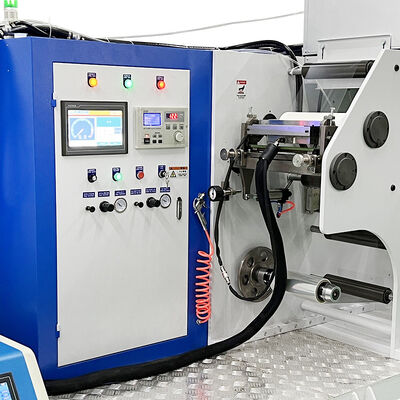

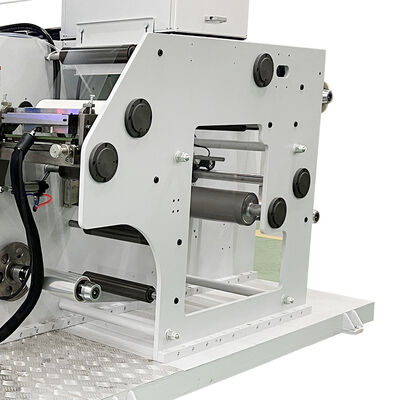

Hot Melt Coating Machine Wholesale Film Coating Machine for Lab

Large Image : Hot Melt Coating Machine Wholesale Film Coating Machine for Lab

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	KEJIAN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3,500

Contact Now

Detailed Product Description

Voltage:	220V	Power Source:	1 Phase, AC 220V
Power Rate:	1050W	Dimensions:	1200×620×550mm
Weight:	120kg	Max Coating Width:	280mm
Coating Length:	Unlimited	Max Capacity:	150g
Min Coating Thickness:	0.05mm	Coating Speed:	4.5m/min
Max Temperature:	250℃	Coating Gap Resolution:	0.005mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Automatic Grade:	Semi-Automatic
Driven Type:	Electric
Highlight:	hot melt coating machine for lab , wholesale film coating machine , lab film coating machine with warranty

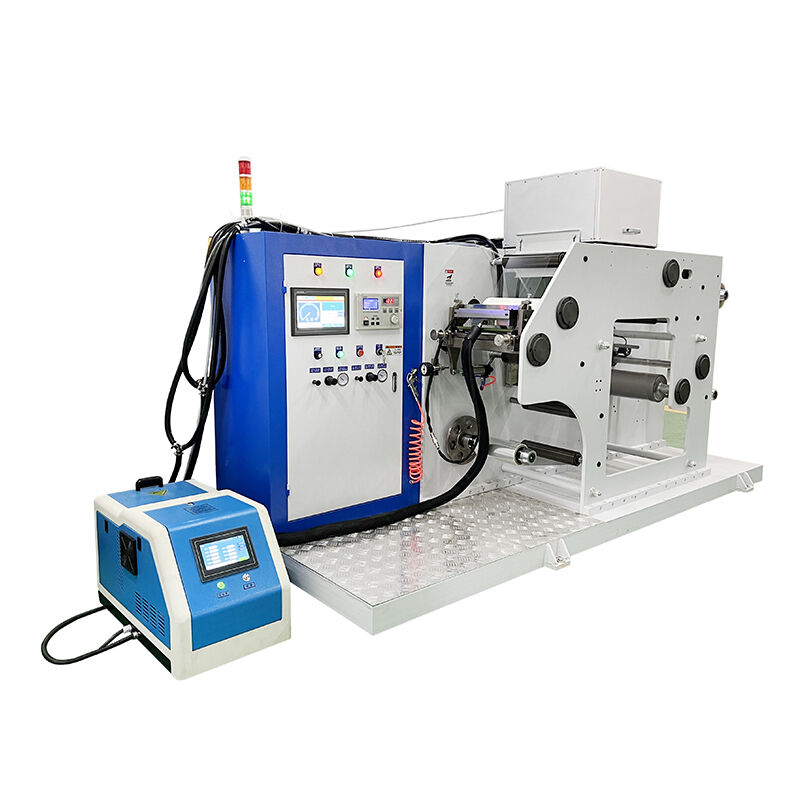

Lab Hot Melt Sampling Coater for Adhesive Tape Production

Precision laboratory benchtop hot melt coater designed for producing coated samples and small-scale production of hot melt adhesives. This machine enables lab-scale simulations of production processes and significantly reduces R&D sample preparation costs.

Primary Applications

Capable of laminating hot melt adhesives to various foils, films, and papers for research and development purposes.

Key Features

Self-contained brake unwinds for adhesive carrier and facestock
Requires 110V/20A circuit and compressed air source
Pivot control for web alignment on adhesive carrier and facestock
Controllable laminating speed and pressure
Maximum operating temperature: 482°F (250°C)
Easy cleanup through quick, uncomplicated disassembly
Generates sample laminates of unlimited length
Precision ground coating bars
Independent heating for coating bars and back reservoir
Coating width controlled by Teflon insert side dams
Durable aluminum and steel construction for long machine life
Adjustable variable speed controller
Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
High-precision micrometer for coating gap adjustment (0.005mm resolution)
Maximum coating width: 280mm
Automatic winding capability
Reversible speed controller with optimal coating speed: 4.5m/min
Adjustable coated liner bar for roll tension control
Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning

Technical Specifications

Maximum Coating Width	280mm
Coating Length	Unlimited
Coating Speed	Adjustable (optimal: 4.5m/min)
Dimensions (L×W×H)	1200×620×550mm
Weight	Approximately 120kg
Power Source	1 phase, AC 220V
Power Rating	1050W
