1000mm Adhesive BOPP Coating Machine for the Production of Tape

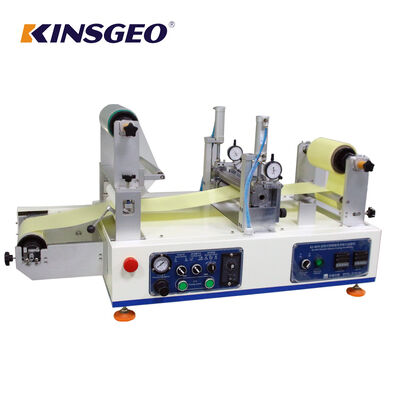

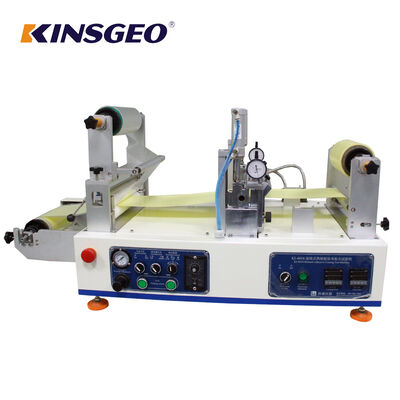

Large Image : 1000mm Adhesive BOPP Coating Machine for the Production of Tape

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	KEJIAN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3,000

Contact Now

Detailed Product Description

Voltage:	220V	Dimension:	1200620550mm
Weight:	120kg	Power Source:	1 Phase, AC 220V
Power Rate:	1050W	Max Coating Width:	280mm
Coating Length:	Unlimited	Max Capacity:	150g
Min Coating Thickness:	0.05mm	Max Temperature:	482℉(250℃)
Coating Speed:	4.5m/min	Coating Gap Resolution:	0.005mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Automatic Grade:	Semi-Automatic
Driven Type:	Electric
Highlight:	1000mm BOPP tape coating machine , adhesive tape production machine , lab coating machine with BOPP

1000mm Adhesive BOPP Coating Machine for Tape Production

This precision laboratory benchtop Hot Melt Coater is designed for producing coated samples or small production runs of hot melt adhesives, with capability to laminate to various foils, films, and papers. Ideal for lab-scale simulations of production processes, it significantly reduces R&D sample preparation costs.

Primary Applications

Precision coating and laminating of hot melt adhesives onto various substrates including foils, films, and papers for research, development, and small-scale production applications.

Key Features

Self-contained brake unwinds for adhesive carrier and facestock
Requires 110V/20A circuit and compressed air source
Pivot control on adhesive carrier and facestock for web alignment
Controllable laminating speed and pressure
Maximum operating temperature: 482°F (250°C)
Easy cleanup through quick, uncomplicated disassembly
Generates sample laminates of unlimited length
Precision ground coating bars
Independent heating for coating bars and back reservoir
Coating width controlled by Teflon insert side dams
Durable aluminum and steel construction for long machine life
Adjustable variable speed controller
Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
Large diameter high-precision micrometer for coating gap adjustment (0.005mm resolution)
Maximum coating width: 280mm with unlimited coating length
Reversible speed controller with optimal coating speed: 4.5m/min
Adjustable coated liner bar for roll tension control
Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning

Technical Specifications

Maximum Coating Width	280mm
Coating Length	Unlimited
Coating Speed	Adjustable, optimal at 4.5m/min
Dimensions (L×W×H)	1200×620×550mm
Weight	Approximately 120kg
Power Source	1 phase, AC 220V
Power Rating	1050W
