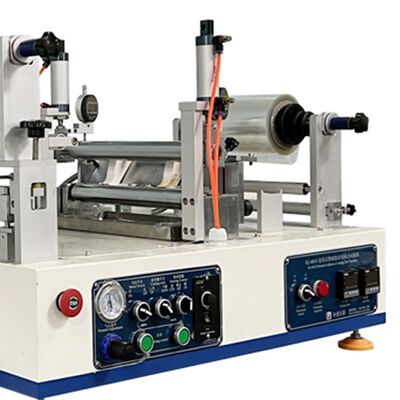

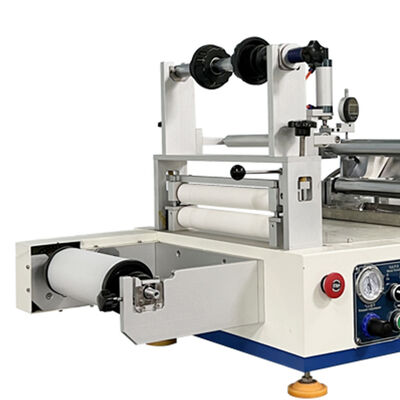

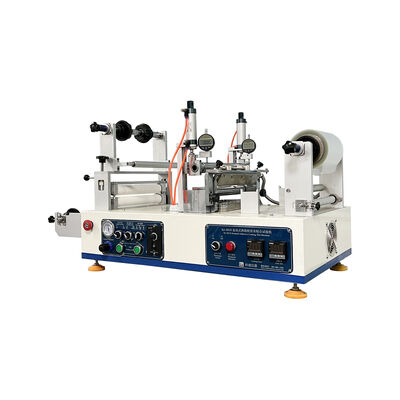

Adhesive Paper Hot Melt Coating Machine Small Tape Coater for Lab

Large Image : Adhesive Paper Hot Melt Coating Machine Small Tape Coater for Lab

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	KEJIAN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CN¥58,419.65

Contact Now

Detailed Product Description

Voltage:	220V	Power Rate:	1050W
Dimension:	1200620550mm	Weight:	120kg
Max Coating Width:	280mm	Coating Length:	Unlimited
Max Capacity:	150g	Min Coating Thickness:	0.05mm
Max Temperature:	250℃	Coating Speed:	4.5m/min
Coating Gap Resolution:	0.005mm	Power Source:	1 Phase, AC 220V
Driven Type:	Electric	Automatic Grade:	Semi-Automatic
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Highlight:	small adhesive paper coater machine , lab tape coating equipment , hot melt adhesive coater

Adhesive Paper Hot Melt Coating Machine - Small Tape Coater for Lab

This precision laboratory benchtop Hot Melt Coater is designed for producing coated samples or small production runs of hot melt adhesives, with subsequent lamination to various foils, films, and papers. The machine enables easy setup and study of lab-scale simulations of production processes, significantly reducing R&D sample preparation costs.

Key Applications

Ideal for research and development applications, this coater facilitates lab-scale simulations of production processes for hot melt adhesives, allowing for efficient sample preparation and process optimization.

Machine Features

Self-contained brake unwinds for adhesive carrier and facestock
Requires 110V/20A circuit and compressed air source
Pivot control on adhesive carrier and facestock for web alignment
Controllable laminating speed and pressure
Maximum operating temperature: 482°F (250°C)
Easy cleanup through quick, uncomplicated disassembly
Generates sample laminates of unlimited length
Precision ground coating bars
Independent heating for coating bars and back reservoir
Coating width controlled by Teflon insert side dams
Durable aluminum and steel construction for long machine life
Adjustable variable speed controller
Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
Large diameter high-precision micrometer for coating gap adjustment (0.005mm resolution)
Maximum coating width: 280mm
Reversible speed controller with optimal coating speed: 4.5m/min
Adjustable coated liner bar for roll tension control
Quick disassembly of heating bar, rubber roller, and reservoir for cleaning

Technical Specifications

Maximum Coating Width	250mm
Coating Length	Unlimited
Coating Speed	Adjustable (optimal: 4.5m/min)
Dimensions (L×W×H)	1200×620×550mm
Weight	Approximately 120kg
Power Source	1 phase, AC 220V
Power Rating	1050W
