Product Details:
Payment & Shipping Terms:
|
| Motor: | ACMotor+Transducer | Control: | PC |
|---|---|---|---|
| Test Speed: | 50~500 Mm/min（100，200，300，400，500）Stepless Speed And Adjustable | Accuracy: | ±1% Or Better |
| Capacity: | 500 （10，20，50，100，200，500）KG Optional | Pplication: | Rubber ,plastic ,nylon ,leather And Etc |
| Design Criteria: | ASTM D903,GB/T16491 And Etc | Maximum Trip: | 1000mm |
| Driving Method: | High Precise Ball Screw | Grips: | Different Material And Test Method With Different Grips |
| High Light: | leather softness tester,material testing equipment |
||

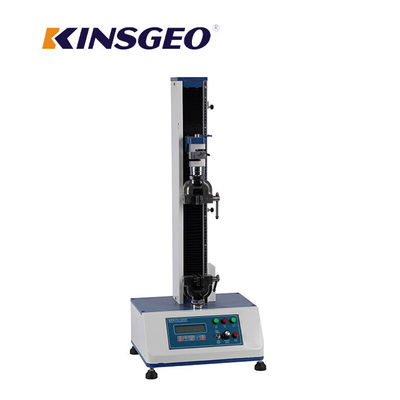

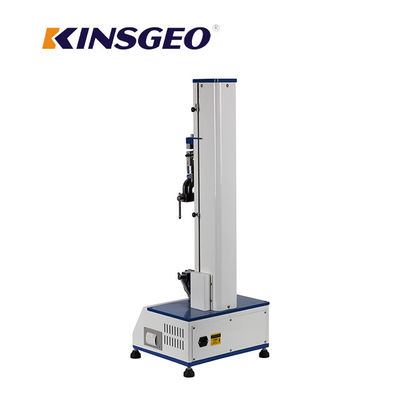

50~500 mm/min Speed Digital Compressive Strength Testing Machine For Rubber / Plastic / Nylon
Standard:
ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7
Uses:
This machine is used to test tensile, peeling, shearing for textile, rubber, plastic, synthetic leather, tape, electron and metal,etc, to determine the product or semi-product quality.
Character:
1. The appearance uses cold drawing static spraying maps,Concise and easy,multifunction.
2. Figure liquid display,can distinguish the tension or pression,easy to read.Three kind unit:N-Kgf-Lbf,can interchange ；
3. You can read the peak value from the tension and pression direction,and zero clearing aumotically and handle.
4. Halt overload funtion.
5. Floor type with beautiful structure.
Specifications:
| Capacity choice |
500 (10,20,50,100,200,500)KG Optional |
|
Unit |
Kg,lb,N |
|
Accuracy |
±1% or better |
|
Motor |
ACMotor+Transducer |
|
Resolution |
1/50,000 |
|
Test speed |
50~500 mm/min(100,200,300,400,500)Stepless speed and adjustable |
|
Power |
AC 220V,Single phase |
|
Test Stroke |
1200mm |
|
Dimension |
600x450x1800mm(length*width*height) |
|
Display Panal |
load cell+KJ-2006displayer |
|
Protection |
Leakage protection,Over-load protection,Emergency stop,Upper and lower limit device. |
Software Functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
Pictures:
