Product Details:
Payment & Shipping Terms:
|
| Usage Strength: | Testing Machine | Warranty: | 12 Months |
|---|---|---|---|
| Aplication: | Leather | Standards: | ISO - 105, ASTM - D2054, AATCC - 8, JIS - L0849 |
| Specimen: | 140 X 50 Mm | Friction Distance: | 100 Mm |
| Weight: | 47kg | Power: | 1 For, AC220V, 3 A |
| Display: | Digital Display |

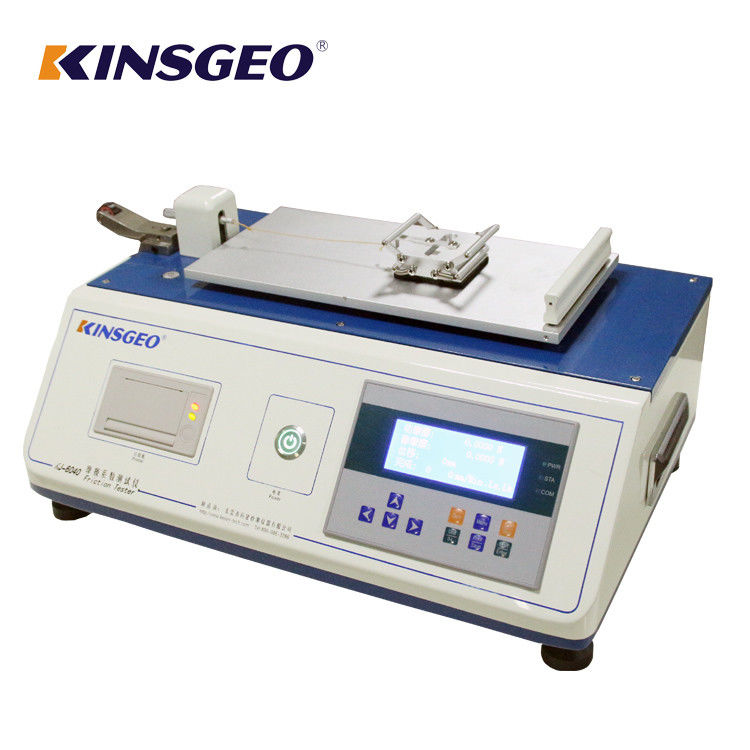

Digital Display Plastic Film Sheet Static Coefficient of Friction Tester with Curve With One Year Warranty
Design standards :
ISO - 105, ASTM - D2054, AATCC - 8, JIS - L0849
Characteristics:
1, rotary coefficient of friction tester adopts the advanced design technique labeled by piecewise linear with real-time display and real-time analysis.
2, rotary coefficient of friction tester Calibration methods: intelligent calibration, reducing the error
3, Display: LCD showing working status and test results
4, rotary coefficient of friction tester adopts one chip microcomputer system with high speed, high precision, and high integration to intelligently control each functional module.
5, The core parts and the components are provided with imported or homemade superior products to guarantee precise, stable and long-term use.
6, rotary coefficient of friction tester has the communication function of the RS232 computer, and supporting control software to account, analyze and deal with the test results
7, The specialized appearance design can easily mix with the office and test environment.
Specifications:
| Type type | double cone electric MOTOR (dry friction wet friction) |
| Specimen | 140 x 50 mm |
| Heavy load | 9 n |
| The horse da | 1/4 HP |
| Friction velocity | 60 CPM |
| Friction distance | 100 mm |
| Wipe the cone | 16 or 19 25 mm choice |
| Meter counter | LCD, 0 ~ 999999 |
| Body product | 53 × 40 x 32 cm |
| Heavy quantity | 47 kg |
| Electric source | 1 for, AC220V, 3 a |
KJ-8150 Plastic and Paper Coefficient Of Friction Tester
1,Model KJ-1085 adopts the advanced design technique labeled by piecewise linear with real-time display and real-time analysis
Note: Function and usageModel KJ-1085 Coefficient of Friction Tester measures the coefficient of static friction and dynamic friction when materials are sliding;
It is applicable for the packaging trade, film plants, testing institutions and so on ;
KJ-8150 Plastic and Paper Coefficient Of Friction Tester
Features
1,Model KJ-1085 adopts the advanced design technique labeled by piecewise linear with real-time display and real-time analysis.
2,Calibration methods: intelligent calibration, reducing the error
3,Display: LCD showing working status and test results
4,It adopts one chip microcomputer system with high speed, high precision, and high integration to intelligently control each functional module.
5,The core parts and the components are provided with imported or homemade superior products to guarantee precise, stable and long-term use.
6,It has the communication function of the RS232 computer, and supporting control software to account, analyze and deal with the test results
7,The specialized appearance design can easily mix with the office and test environment
KJ-8150 Plastic and Paper Coefficient Of Friction Tester
Specifications
Sample thickness: ≤0.2mm
Sliding piece size: 63×63mm)
Sliding piece mass: 200×2g
Slider-speed:100 ± 10mm/min, 125 ± 10mm/min, 150 ± 10mm/min third gear for section
Working-table board size: 200×470mm)
Digital display: Display static friction and dynamic friction at the same time automatically.
Measuring precision: ±2%
Velocity of sliding-piece movement: 100×10mm/min
Force measurement range: 0-5N
Power supply: 200V, 50Hz
Note:The computer can be an optional part.
Yarn Coefficient of Friction Tester can measure the coefficient of static friction and dynamic friction when materials are sliding. It is applicable for the packaging trade, film plants, testing institutions and so on.
Characteristics:
1,It adopts the advanced design technique labeled by piecewise linear with real-time display and real-time analysis.
2,Calibration methods: intelligent calibration, reducing the error
3,Display: LCD showing working status and test results
4,It adopts one chip microcomputer system with high speed, high precision, and high integration to intelligently control each functional module.
5,The core parts and the components are provided with imported or homemade superior products to guarantee precise, stable and long-term use.
6,It has the communication function of the RS232 computer, and supporting control software to account, analyze and deal with the test results
7,The specialized appearance design can easily mix with the office and test environment.
Pictures:
