High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab

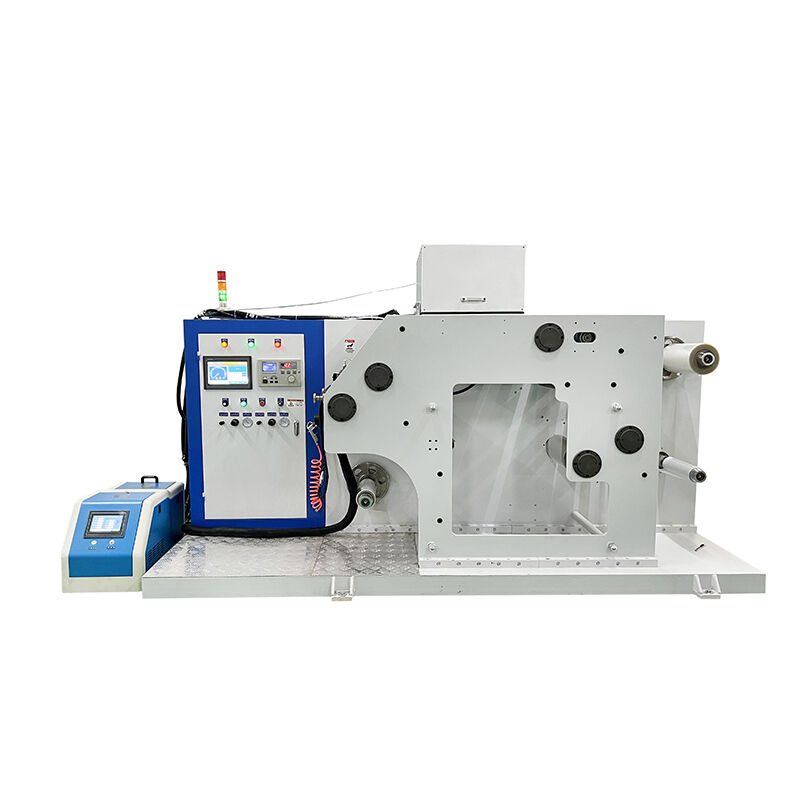

Large Image : High Productivity Pvc Tape Adhesive Tape Coating Machine for Lab

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	KEJIAN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$5,000

Contact Now

Detailed Product Description

Voltage:	220V	Power Source:	1 Phase, AC 220V
Power Rate:	1050W	Dimensions:	1200×620×550mm
Weight:	120kg	Max Coating Width:	280mm
Coating Length:	Unlimited	Coating Speed:	4.5m/min
Min Coating Thickness:	0.05mm	Max Operating Temperature:	250℃
Coating Gap Resolution:	0.005mm	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Automatic Grade:	Semi-Automatic	Driven Type:	Electric
Max Capacity:	150g
Highlight:	PVC tape coating machine for lab , adhesive tape coating machine , high productivity lab coating machine

High Productivity PVC Tape Adhesive Tape Coating Machine for Lab

Laboratory Hot Melt Sampling Coater for Adhesive Tape Production

This precision benchtop hot melt coater is designed for producing coated samples and small-scale production of hot melt adhesives, with lamination capabilities for various foils, films, and papers. Ideal for lab-scale simulations of production processes, it significantly reduces R&D sample preparation costs.

Key Applications

Laboratory-scale simulations of production processes for research and development applications, enabling efficient sample preparation and process study.

Product Features

Self-contained brake unwinds for adhesive carrier and facestock
Requires 110V/20A circuit and compressed air source
Pivot control on adhesive carrier and facestock for web alignment
Controllable laminating speed and pressure
Maximum operating temperature: 482°F (250°C)
Easy cleanup through quick, uncomplicated disassembly
Generates sample laminates of unlimited length
Precision ground coating bars
Independent heating for coating bars and back reservoir
Coating width controlled by Teflon insert side dams
Durable aluminum and steel construction for long machine life
Adjustable variable speed controller
Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
High-precision micrometer for coating gap adjustment (0.005mm resolution)
Maximum coating width: 280mm
Automatic winding for unlimited length tape production
Reversible speed controller with optimal coating speed: 4.5m/min
Adjustable coated liner bar for roll tension control
Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning

Technical Specifications

Maximum Coating Width	280mm
Coating Length	Unlimited
Coating Speed	Adjustable (Optimal: 4.5m/min)
Dimensions (L×W×H)	1200×620×550mm
Weight	Approximately 120kg
Power Source	1 phase, AC 220V
Power Rating	1050W
