High Speed Automatic Digital Spot Uv Coater Coating Machine

High Speed Automatic Digital Spot Uv Coater Coating Machine
High Speed Automatic Digital Spot Uv Coater Coating Machine High Speed Automatic Digital Spot Uv Coater Coating Machine High Speed Automatic Digital Spot Uv Coater Coating Machine

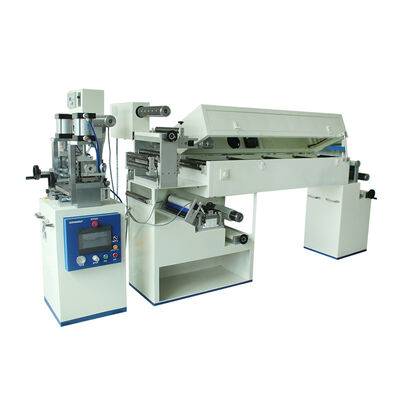

Large Image :  High Speed Automatic Digital Spot Uv Coater Coating Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: KEJIAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Voltage: 220V Dimension: 1200*620*550mm
Weight: 120kg Power Source: 1 Phase, AC 220V
Power Rate: 1050W Max Coating Width: 280mm
Coating Length: Unlimited Max Capacity: 150g
Min Coating Thickness: 0.05mm Coating Speed: 4.5m/min
Max Temperature: 482℉(250℃) Coating Gap Resolution: 0.005mm
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump Automatic Grade: Semi-Automatic
Driven Type: Electric
Highlight:

automatic digital spot UV coater

,

high speed UV coating machine

,

lab coating machine with warranty

High Speed Automatic Digital Spot UV Coater Coating Machine
Product Overview
This precision laboratory benchtop Hot Melt Coater is designed for producing coated samples or small production runs of hot melt adhesives, with capability to laminate to various foils, films, and papers. The machine enables lab-scale simulations of production processes, significantly reducing R&D sample preparation costs.
Key Features
Self-contained brake unwinds for adhesive carrier and facestock
Requires 110V/20A circuit and compressed air source
Pivot control on adhesive carrier and facestock for web alignment
Controllable laminating speed and pressure
Maximum operating temperature: 482°F (250°C)
Easy cleanup through quick, uncomplicated disassembly
Generates sample laminates of unlimited length
Precision ground coating bars
Independent heating for coating bars and back reservoir
Coating width controlled by Teflon insert side dams
Durable aluminum and steel construction for long machine life
Adjustable variable speed controller
Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
Large diameter high-precision micrometer for coating gap adjustment (0.005mm resolution)
Maximum coating width: 280mm
Reversible speed controller with optimal coating speed: 4.5m/min
Adjustable coated liner bar for roll tension control
Quick disassembly of heating bar, rubber roller and reservoir for easy cleaning
Technical Specifications
Maximum Coating Width250mm
Coating LengthUnlimited
Coating SpeedAdjustable, optimal at 4.5m/min
Dimensions (L×W×H)1200×620×550mm
WeightApproximately 120kg
Power Source1 phase, AC 220V
Power Rating1050W

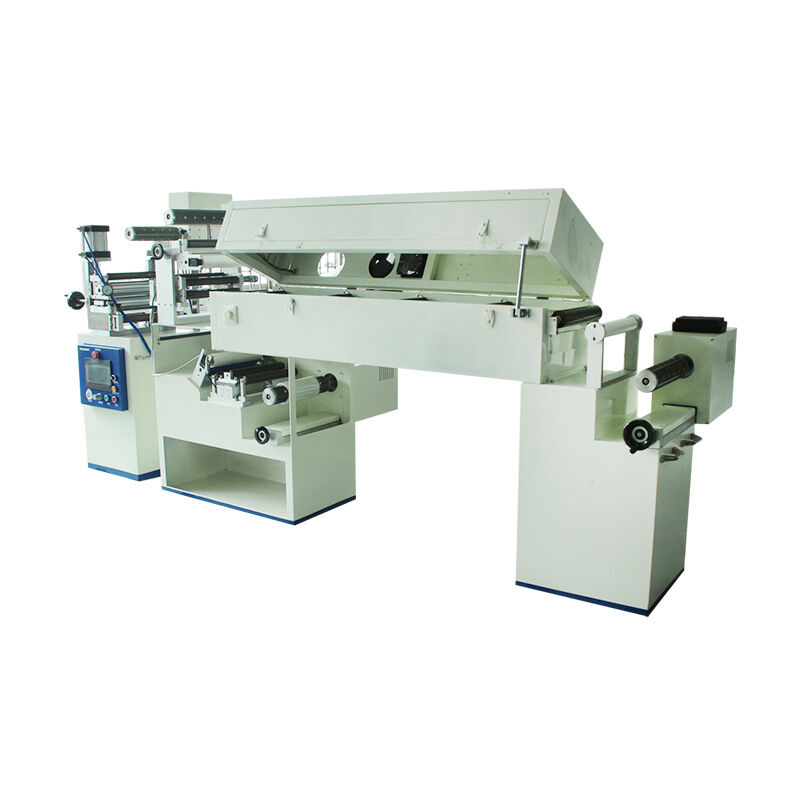

Product Images
High Speed Automatic Digital Spot Uv Coater Coating Machine 0 High Speed Automatic Digital Spot Uv Coater Coating Machine 1 High Speed Automatic Digital Spot Uv Coater Coating Machine 2 High Speed Automatic Digital Spot Uv Coater Coating Machine 3
Company Information
High Speed Automatic Digital Spot Uv Coater Coating Machine 4 High Speed Automatic Digital Spot Uv Coater Coating Machine 5 High Speed Automatic Digital Spot Uv Coater Coating Machine 6 High Speed Automatic Digital Spot Uv Coater Coating Machine 7
Packing & Delivery
High Speed Automatic Digital Spot Uv Coater Coating Machine 8 High Speed Automatic Digital Spot Uv Coater Coating Machine 9
Why Choose Our Products
Warranty Service: All machines include one-year free warranty with spare components provided (excludes improper operation or intentional damage)
Training Services: Our engineers provide comprehensive training during installation and commissioning until your staff can operate the machine properly
Certification Services: We provide related certificates to clients free of charge upon request
Maintenance Support: We respond to all inquiries and technical issues within 48 hours
