Continuous Hotmelt Coating Laminating Machine to Make the Samples

Continuous Hotmelt Coating Laminating Machine to Make the Samples
Continuous Hotmelt Coating Laminating Machine to Make the Samples Continuous Hotmelt Coating Laminating Machine to Make the Samples

Large Image :  Continuous Hotmelt Coating Laminating Machine to Make the Samples

Product Details:
Place of Origin: Guangdong, China
Brand Name: KEJIAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Voltage: 220V Power Rate: 1050W
Max Coating Width: 280mm Coating Length: Unlimited
Max Capacity: 150g Min Coating Thickness: 0.05mm
Dimensions: 1200×620×550mm Weight: 120kg
Power Source: 1 Phase, AC 220V Coating Speed: 4.5m/min
Max Temperature: 482℉(250℃) Reservoir Temperature: 400°F (204°C)
Coating Gap Resolution: 0.05mm Material Construction: Aluminum And Steel
Coating Bars Material: 303 Stainless Steel
Highlight:

hotmelt coating laminating machine

,

lab coating machine for samples

,

continuous laminating machine with warranty

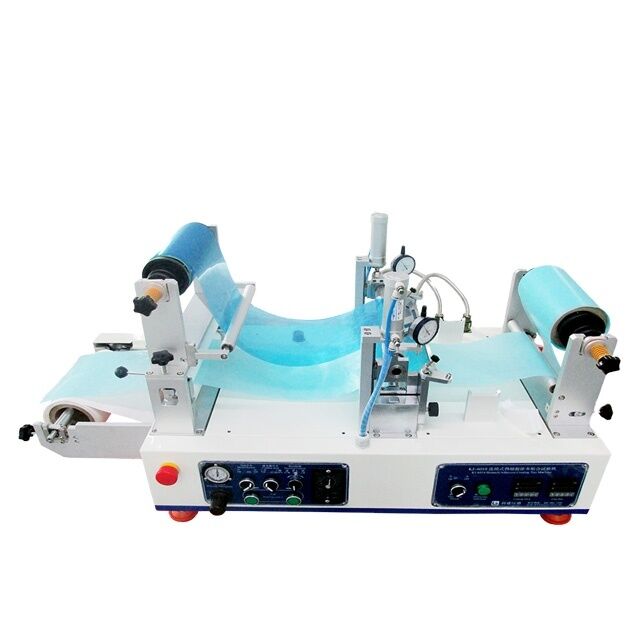

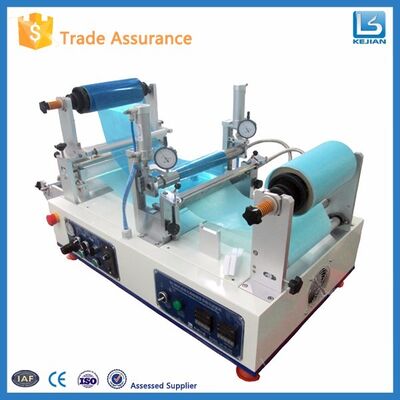

Continuous Hotmelt Coating Laminating Machine for Sample Production
The precision laboratory benchtop Hot Melt Coater is designed for producing coated samples or small production runs of hot melt adhesives, then laminating them to various foils, films, and papers. This equipment enables easy setup and study of lab-scale simulations of production processes.
Continuous Hotmelt Coating Laminating Machine to Make the Samples 0 Continuous Hotmelt Coating Laminating Machine to Make the Samples 1
Key Features
  • Self-contained brake unwinds for adhesive carrier and facestock
  • Requires 110V/20A circuit and compressed air source
  • Pivot control on adhesive carrier and facestock for web alignment
  • Controllable laminating speed and pressure
  • Maximum operating temperature: 482°F (250°C)
  • Easy cleanup through quick, uncomplicated disassembly
  • Generates sample laminates of unlimited length
  • Precision ground coating bars
  • Independent heating for coating bars and back reservoir
  • Coating width controlled by Teflon insert side dams
  • Durable aluminum and steel construction for long machine life
  • Adjustable variable speed controller
  • Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
  • Large diameter high-precision micrometer for coating gap adjustment with 0.05mm resolution
  • Maximum coating width: 280mm with automatic winding capability
  • Reversible speed controller with optimal coating speed: 4.5m/min
  • Adjustable coated liner bar for roll tension control
  • Quick disassembly of heating bar, rubber roller and reservoir for easy cleaning
Technical Specifications
Maximum Coating Width 280mm
Coating Length Unlimited
Coating Speed Adjustable, optimal: 4.5m/min
Maximum Capacity 150g
Minimum Coating Thickness 0.05mm
Dimensions (L×W×H) 1200×620×550mm
Weight Approximately 120kg
Power Source 1 phase, AC 220V
Power Rating 1050W
Additional Details
  • Rugged construction withstands production environment demands
  • Aluminum frame with hard coat anodized and Teflon coating
  • Precision ground 303 stainless steel coating bars for accurate cross-web coating
  • Reservoir capacity up to 150g
  • Reservoir maintains temperatures up to 400°F (204°C)
  • Individual digital PID controllers for reservoir and coating bar temperatures
  • Steel base assembly provides firm support for coating head and unwind stand
  • Adjustable Teflon side dams for coating control from 1/2" to 12" width
  • Safety features include appropriate guarding and emergency stop switch
  • Stepless variable speed motor
Continuous Hotmelt Coating Laminating Machine to Make the Samples 2 Continuous Hotmelt Coating Laminating Machine to Make the Samples 3 Continuous Hotmelt Coating Laminating Machine to Make the Samples 4 Continuous Hotmelt Coating Laminating Machine to Make the Samples 5
