Economic Electric Small Hot Melt Lab Use Adhesive Tape Coating Machine with Motor and Wood Packaging

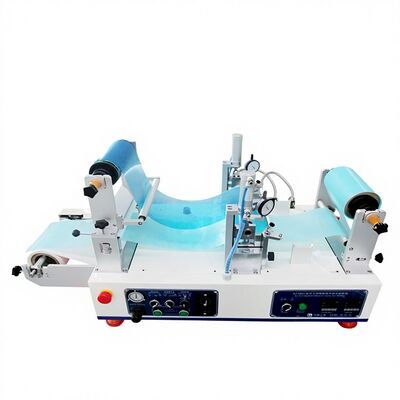

Large Image : Economic Electric Small Hot Melt Lab Use Adhesive Tape Coating Machine with Motor and Wood Packaging

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	KEJIAN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$5,000

Contact Now

Detailed Product Description

Voltage:	220V/330V	Dimension:	1200×620×550mm
Weight:	65kg	Maximum Coating Width:	280mm
Coating Length:	Unlimited	Coating Speed:	Adjustable, 4.5m/min
Power Source:	1 Phase, AC 220V	Power Rate:	1050W
Maximum Temperature:	482℉(250℃)	Minimum Coating Thickness:	0.005mm
Coating Gap Resolution:	0.005mm	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Automatic Grade:	Automatic	Driven Type:	Electric
Material Construction:	Aluminum And Steel
Highlight:	small electric hot melt coating machine , lab adhesive tape coating machine , wood packaging coating machine with motor

Economic Electric Small Hot Melt Lab Use Adhesive Tape Coating Machine

This precision laboratory benchtop Hot Melt Coater is designed for producing coated samples or small production runs of hot melt adhesives, with subsequent lamination to various foils, films, and papers. Lab-scale simulations of production processes can be easily configured and studied.

Key Features

Self-contained brake unwinds for adhesive carrier and facestock
Requires 110V/20A circuit and compressed air source
Pivot control on adhesive carrier and facestock for web alignment
Controllable laminating speed and pressure
Maximum operating temperature: 482°F (250°C)
Easy cleanup through quick, uncomplicated disassembly
Generates sample laminates of unlimited length
Precision ground coating bars
Independent heating for coating bars and back reservoir
Coating width controlled by Teflon insert side dams
Durable aluminum and steel construction for long machine life
Adjustable variable speed controller
Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
Large diameter high-precision micrometer for coating gap adjustment (0.005mm resolution)
Maximum coating width: 280mm
Reversible speed controller with optimal coating speed: 4.5m/min
Adjustable coated liner bar for roll tension control
Quick disassembly of heating bar, rubber roller, and reservoir for easy cleaning

Technical Specifications

Maximum Coating Width	280mm
Coating Length	Unlimited
Coating Speed	Adjustable (optimal: 4.5m/min)
Dimensions (L×W×H)	1200×620×550mm
Weight	Approximately 120kg
Power Source	1 phase, AC 220V
Power Rating	1050W

Manufacturer Information

Guangdong KeJian Testing Instrument Co., LTD., founded in 2003, is a professional research and development company specializing in precision testing instruments and complete test solutions. With a professional equipment technology R&D team and excellent production management, we continuously provide customers with satisfactory products and services, gradually becoming a leading instrumentation supplier in the industry.

In line with market globalization trends, Kejian Instruments registered its wholly-owned subsidiary - Kejian Industrial Hong Kong Limited in 2009, expanding into international markets. To date, Kejian instruments has provided high-quality products and services to customers in more than 50 countries and regions worldwide, with many becoming long-term partners due to their recognition and trust in Kejian instruments.

Based on industry recognition, The National Standards Drafting Committee invited us to participate in drafting and revising multiple national standards. We have been invited to attend adhesive industry summit forums multiple times, contributing to the development of national and industrial technologies.
