Product Details:
Payment & Shipping Terms:
|
| Product Name: | Universal Testing Machine | Test Speed:: | 0.1-500mm/min Selectable |
|---|---|---|---|
| Motor: | Panasonic Servo Motor | Accuracy: | ±0.5% |
| Capacity: | 5,10,20,25,50,100,200,500kg Optional | Pplication: | Rubber ,plastic ,nylon ,leather And Etc |
| Grips: | Different Material And Test Method With Different Grips | Warranty: | 12 Months |
| High Light: | 0.5g Universal Testing Machines,Peeling Force Universal Testing Machines,Release Film Peeling Force Testing Machine |
||

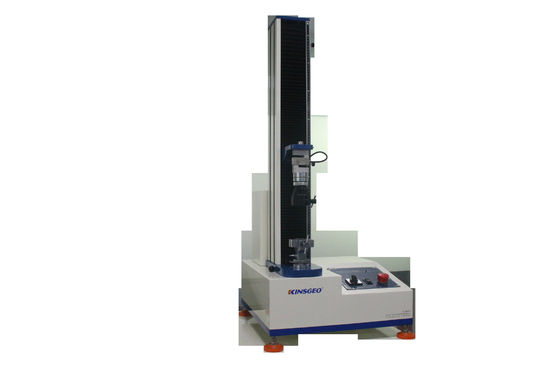

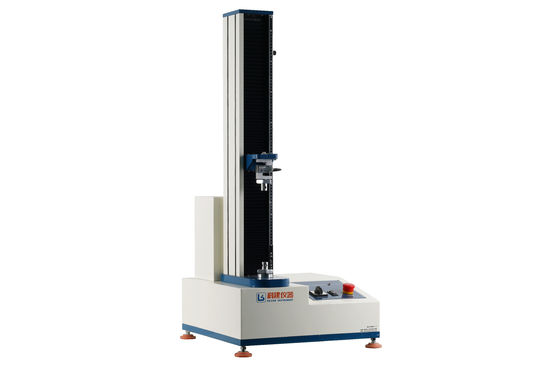

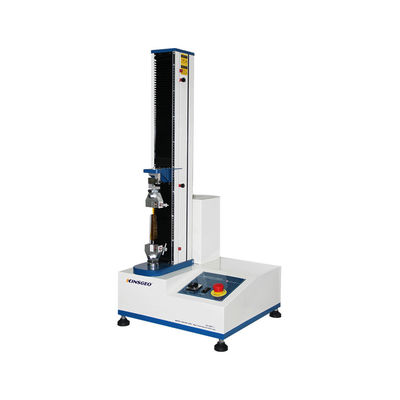

0.5g High Precision Peeling Force Testing Machine For Tape And Release Film
Design standard:
ASTM D903,ASTM D3330, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,ASTM C633 and etc.
Uses:
Tensile Strength Testing Machine is designed specially for the adhesive industry. Used to testing peeling strength with different methods. It can perform the 180&90 degree, T-shape peeling test and tensile,shearing&spliting strength test with different clamps.
KeJian tensile strength tester Uses:
Tensile Strength Testing Machine is designed for quick and reliable tensile, compression, bending, shear, peel and fatigue cycling on metals, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Character:
1. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2. Have steady performance, high accuracy, powerful software function and easy operation.
3. Use the USA high-precision load cell.Machine accuracy is ±0.5%.
Technical parameter:
| Model | Computer Universal Tensile Testing Machine |
| Max load | 50N,100N,200N,500N, 1KN, 2KN (optional) |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade) |
| Measuring accuracy | Tolerance ±1%/tolerance ±0.5% |
| Tester resolution | Max load 1/200000, and constant resolution |
| Load sensor | Basic configurationsensormax load:from four sensors to choose one |
| Effective tensile stroke | 800mm (can be widened according to customers requirement ) |
| Effective testing width | 300mm |
| Testing speed | From 0.001 to 500mm/min |
| Accruacy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
| Safety | Electronic-limit protection |
Software Functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Our Service:
Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
