Payment & Shipping Terms:
|Uses:||Hot Melt Industry For Lab||Language:||English,Chinese|
|Display:||Digital Control||Color:||Can Be Customized|
|Power Source:||1 Phase, AC 220V||Rate Of Power:||1050W|
hot melt coating machine,
hot melt adhesive coating machine
120KG Hot Melt Coating Machine With 1200 × 620 × 550mm Size 1 Phase AC 220V
The precision laboratory benchtop Hot Melt Coater is capable of producing coated samples or small production of hot melt adhesives, and then laminating to a variety of foils, films, and papers. Lab scale simulations of production processes can be easily set up and studied.
1. Self contained brake unwinds for adhesive carrier and facestock
2. Requires a 110V/20A circuit and compressed air source
3. Pivot control on adhesive carrier and facestock to control web alignment
4. Laminating speed and pressure are controllable
5. Maximum operating temperature 482℉(250℃)
6. Clean up is easily accomplished through quick, uncomplicated disassembly
7. Generates sample laminates as long as needed
8. Precision ground coating bars
9. Both coating bars and the back reservoir are heated independently
10. Width of coating can be controlled by teflon insert side dams
11. Durable aluminum and steel construction means a long machine life with consistent performance
12. Variable speed controller can be adjusted
13. Non rotating bars is separated from the reservoir, with PT-100 high-precision PID temperature control mode

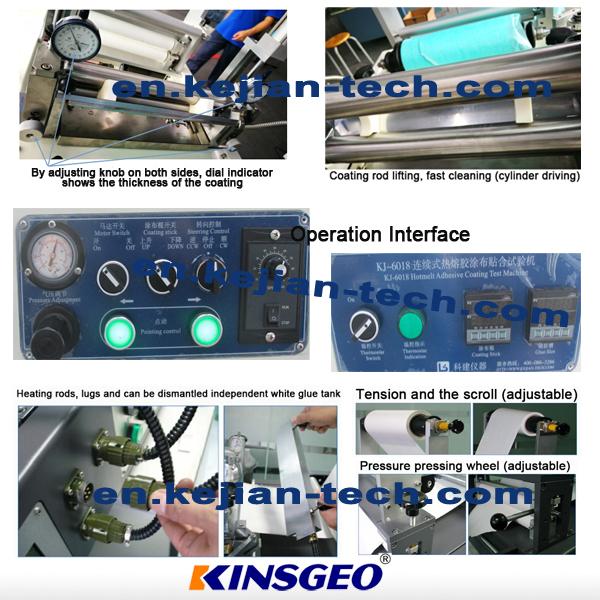

14. Using a large diameter high precise micrometer to adjust the coating gap to control coating thickness, and show the coating thickness through grating scale. The resolution is 0.05mm, that is the minimum coating thickness is 0.05mm.
15. The maximum coating width is 280mm. Width of coating can be controlled by teflon insert side dams. The precision hot melt coator is capable of producing coated samples, and small production. it can coat for a unlimited length tape, and automatic winding.
16. Reversible speed controller can be adjusted , the best coating speed: 4.5m / min
17. The coated liner bar can be adjusted to control the roll tension
18. The heating bar, the rubber roller and reservoir can be quickly disassembled separated from the host, it is perfect to clean adhesive residue.
|The maximum coating width||280mm|
|The coating length||unlimited|
|Coating speed: adjustable, the best coating speed||4.5m/min|
|Minimum coating thickness||0.05mm|
|Power source||1 phase, AC 220V|
|Rate of power||1050W|
1. Rugged construction, capable of withstanding the abuse of the production environment
2. Aluminum frame, hard coat anodized and Teflon coated
3. Precision ground, 303 stainless steel coating bars for highly accurate cross web coating
4. Using a large diameter high precise micrometer to adjust the coating gap to control coating thickness
5. Reservoir capacity up to 150 g
6. Reservoir is capable of maintaining temperatures up to 400°F (204°C)
7. Reservoir and coating bar temperatures are accurately maintained by individual digital PID controllers
8. Steel base assembly firmly supports the coating head and unwind stand
9. Adjustable Teflon side dams allow for coating control from 1/2" to 12" in width
10. Safety features include appropriate guarding and an emergency stop switch
11. Stepless Variable speed motor
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
