|Product Name:||Universal Compression Strength Testing Machines||Warranty:||12 Months|
|Max Stroke:||600mm||Test Speed:||25~300mm/min|
|Motor:||DC Motor 25~40W||Dimention:||60×25×105cm|
universal test equipment,
tensile strength instrument

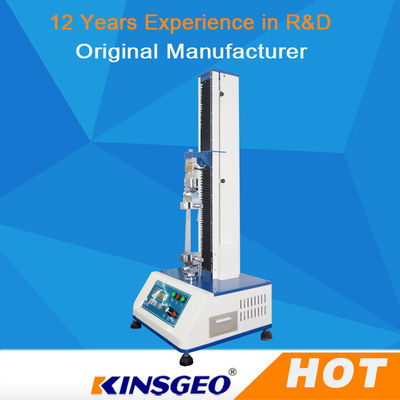

600mm Microcomputer 300N Universal Compression Strength Testing Machines With Ball Screw
Microcomputer 300N Universal Compression Strength Testing Machines With High Precise Ball Screw is applicable to testing tensile strength, elongation, compression strength, bending resistance, tearing force, peeling force, adhesive force and shearing force for specimen, semi-produce and material.
Minimum test precision test:
20 g / 25 mm, to tape, protective film, release paper, from type membrane electronic material industry such as improve the quality of the product.
Meet the standard:
ASTM D3330 FINAT GB/T2792
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
|Unit switchover||kg, N|
|Max stroke||600mm(not including fixture)|
|Motor||DC motor 25~40W|
The sample test:
free end folded 90 degrees, and peel away from the test board, adhesive surface is 25 mm. The sample and test plate clamp on the free end, the gripper. Should make stripping surface consistent with the tester lines of force. Testing machine with 300 mm/min + 10 mm stripping speed continuous strip, strip stripping value of the test strip, averaged four points.
(GB/T2792-1998 adhesive tape peel strength test standard)
Stroke protection: upper and low limit protection, prevent over preset
Force protection: system setting
Emergency stop device: Handling emergencies.
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
