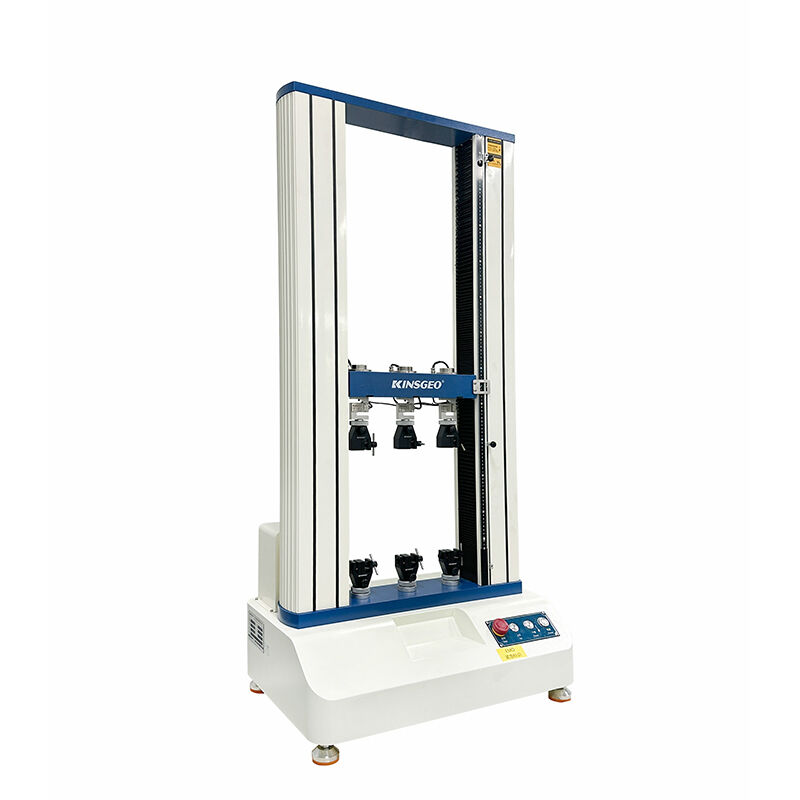

Three-Station Synchronous Peel Strength Tester

Three-Station Synchronous Peel Strength Tester
Three-Station Synchronous Peel Strength Tester

Large Image :  Three-Station Synchronous Peel Strength Tester

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE/ISO
Model Number: KJ-1066A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/4800/SET
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 60Sets/month
Contact Now
Detailed Product Description
Power: 220V/50HZ Usage: Adhesive Shear Force Tester
Product Name: Tape Peeling Tester/Adhesive Peeling Test Equipment Warranty: 1 Year
Application: Adhesive Tape Tester,adhesive Load: 100~2000kg
Weight: About 180kg Capacity: 200
Power Supply: AC220V 10% 50HZ Dimention: 80*52*150cm
Function: Adhesive Tape Test Machine Accuracy: ±0.5%
Accuracy Class: 0.5 Class Stroke Protection: Upper And Lower Protection, Prevent Over Preset
Emergency Stop Device: Handling Emergencies Motor: Japan Panasonic Servo Motor
Optional Accessories: Customized Clamps By Appointed, Force Sensors, , Printer, And Operation Manual
Highlight:

Three-Station Peel Strength Tester

,

Synchronous Peel Adhesion Tester

,

Peel Strength Test Equipment

This machine is mainly used to test the 180° peel strength and release force of adhesive tapes, self-adhesive labels and similar products. It also supports tensile test and shear test for various materials, to evaluate the adhesion performance and physical properties of adhesive products.

The equipment can complete three groups of tests simultaneously, greatly improving testing efficiency. Multiple samples from the same batch can be tested and compared at the same time. It also supports single or multiple independent station testing, with all data displayed on one coordinate graph.
Design Standards Compliance
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ISO 527, ASTM D628, ASTM D5459, ASTM D5458, ASTM D5748, ASTM D-882, ASTM D 1922, ASTM D638, ASTM D412
Technical Specifications
Model KJ-1066D
Speed Range 0.5-500mm/min
Motor Japan ervo Motor
Capacity Options 1~20 kg
Resolution 1/500,000
Effective Testing Space 600mm MAX
Accuracy ±0.5%
Operation Method Windows XP, Win7 operation, computer control
Standard Accessories Computer, printer, system operation manual
Optional Accessories Customized clamps, force sensors, printer, operation manual
Weight 400KG
Dimensions 85*60*130 cm (W*D*H)
Power Requirements 1PH, AC220V, 50/60Hz
Safety Features Upper and lower stroke protection, force protection system, emergency stop device


Three-Station Synchronous Peel Strength Tester 0
