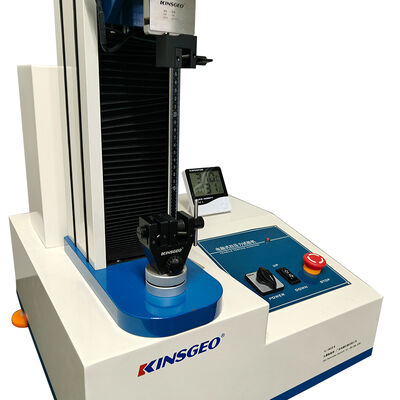

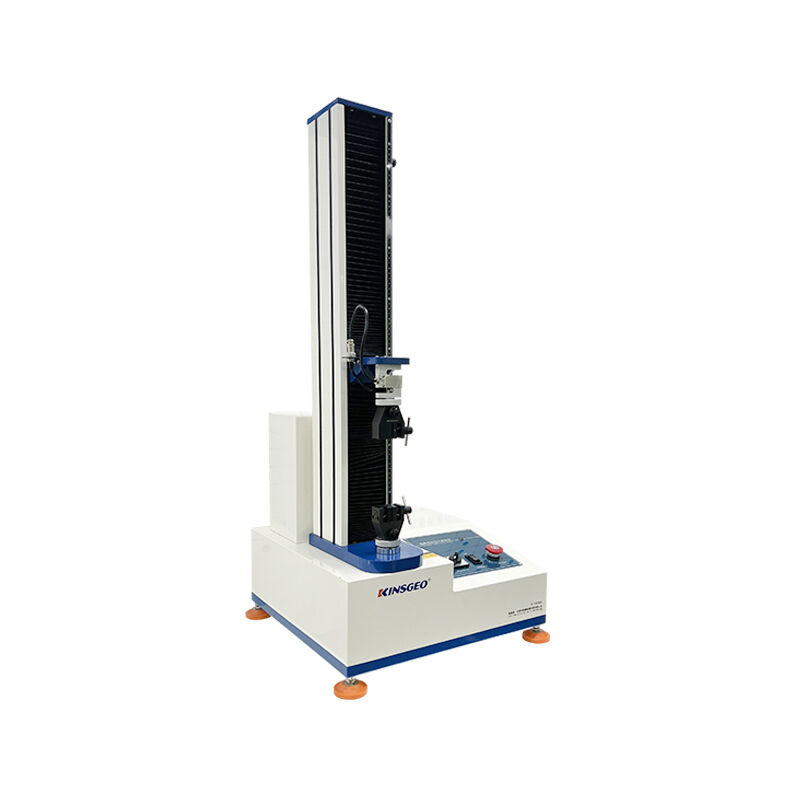

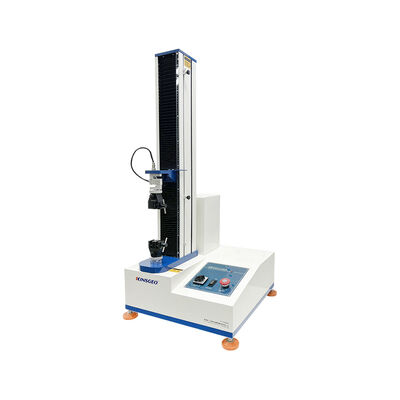

High Precision 180 Degree Tape Peel Strength Tester Peeling Test Equipment

Large Image : High Precision 180 Degree Tape Peel Strength Tester Peeling Test Equipment

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1065A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/3800/SET
Delivery Time:	15 work days
Payment Terms:	T/T,D/A
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Power:	AC220V 50Hz	Usage:	Universal Testing Machine
Weight:	90kg	Product Name:	Computer Control Single Column Universal Testing Machine
Power Supply:	Can Be Customized	Application:	Universal Tester
Standard:	BS.EN.ASTM	Motor:	Panasonic Servo Motor
Warranty:	1 Year	Accuracy:	+/-0.5%
Name:	Electronic Universal Testing Machine	Capacity:	20
Stroke:	650mm(excluding Clamp)	Resolution:	1/250
Tester Resolution:	Constant The Resolution	Operation:	Computer Windows Operation

KJ-1065A Computerized Servo Peel Strength Tester

Application: Equipped with various fixtures, this machine can perform 90-degree peel strength, 180-degree peel strength, and release force tests for adhesive tapes and self-adhesive labels. It is used to evaluate the adhesion performance of adhesive products. It can also test the tensile strength of various substrates. Additionally, the instrument can be edited via software operation to conduct pressure tests, tensile tests, and other types of experiments.

Testing Accuracy: The minimum measurable value is 0.5g/25mm, which effectively improves the quality level of products in the electronic materials industry such as adhesive tapes, protective films, release papers, and release films.

Compliant Standards: ASTM D3330, FINAT, GB/T2792, PSTC

Technical Specifications:

Capacity: 5KG (0.5g-4500g)

Accuracy Class: 0.5 grade

Maximum Load: 5KG

Effective Measuring Range: 0.02/100-100%

Effective Test Width: 100mm

Effective Stroke: 650mm

Test Speed: 0.5~500mm/min

Speed Accuracy: Within ±0.5% of the indicated value

Displacement Measurement Accuracy: Within ±0.5% of the indicated value

Technical Specifications

Design Standards	ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7
Model	KJ-1065A
Capacity	5kg (optional)
Stroke	650mm
Speed Range	50-400mm/min adjustable, constant speed, 300mm/min
Test Space	120mm MAX
Accuracy	±0.5%
Resolution	1/50,000
Motor	Adjustable speed motor
Display	Force and elongation display
Dimensions (W×D×H)	50×50×120cm
Optional Accessories	Stretcher, air clamp
Weight	60kg
Power	1PH, AC220V, 50/60Hz
