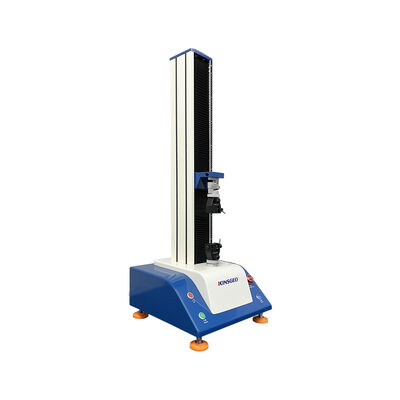

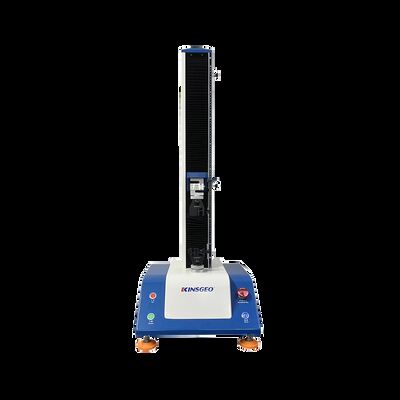

ASTM D3330 Tape Peel Strength Testing Instrument

ASTM D3330 Tape Peel Strength Testing Instrument
ASTM D3330 Tape Peel Strength Testing Instrument ASTM D3330 Tape Peel Strength Testing Instrument ASTM D3330 Tape Peel Strength Testing Instrument

Large Image :  ASTM D3330 Tape Peel Strength Testing Instrument

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE/ISO
Model Number: KJ-1065C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/3300/SET
Delivery Time: 15 work days
Payment Terms: T/T,D/A
Supply Ability: 30Sets/month
Contact Now
Detailed Product Description
Power: AC220V 50Hz Weight: 35kg
Product Name: Computer Control Single Column Universal Testing Machine Power Supply: Can Be Customized
Application: Peeling Tester Standard: BS.EN.ASTM
Motor: Panasonic Servo Motor Warranty: 1 Year
Accuracy: +/-0.5% Name: Electronic Universal Testing Machine
Capacity: 20 Stroke: 650mm(excluding Clamp)
Resolution: 1/250 Tester Resolution: Constant The Resolution
Operation: Computer Windows Operation

This machine is equipped with various fixtures to test the 900 and 1800 peel strengths, as well as the release force of adhesive tape and self-adhesive label products. This is to consider the adhesion performance of adhesive tape products. It can also test the tensile strength of the substrate. Additionally: This instrument can be operated and edited through software, and can perform tests such as pressure and tension.
Technical Specifications
Design Standards

ASTM D3330   FINAT  GB/T2792   PSTC
Model KJ-1065A-H
Capacity 1, 2kg (optional)
Stroke 650mm
Speed Range 0.5-500mm/min adjustable
Test Space 120mm MAX
Accuracy ±0.5%
Resolution 1/50,000
Motor Adjustable speed motor
Display Force and elongation display
Dimensions (W×D×H) 50×50×120cm
Optional Accessories Stretcher, air clamp
Weight 35kg
Power 1PH, AC220V, 50/60Hz

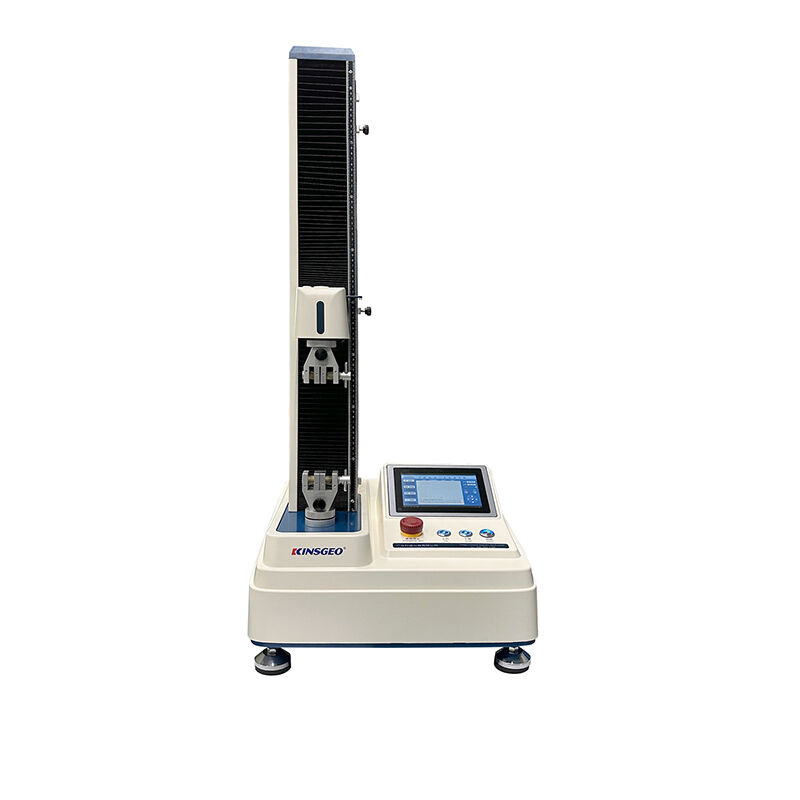

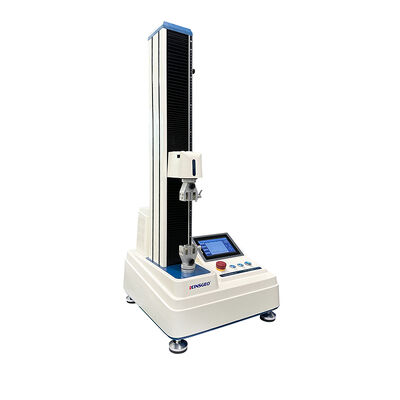

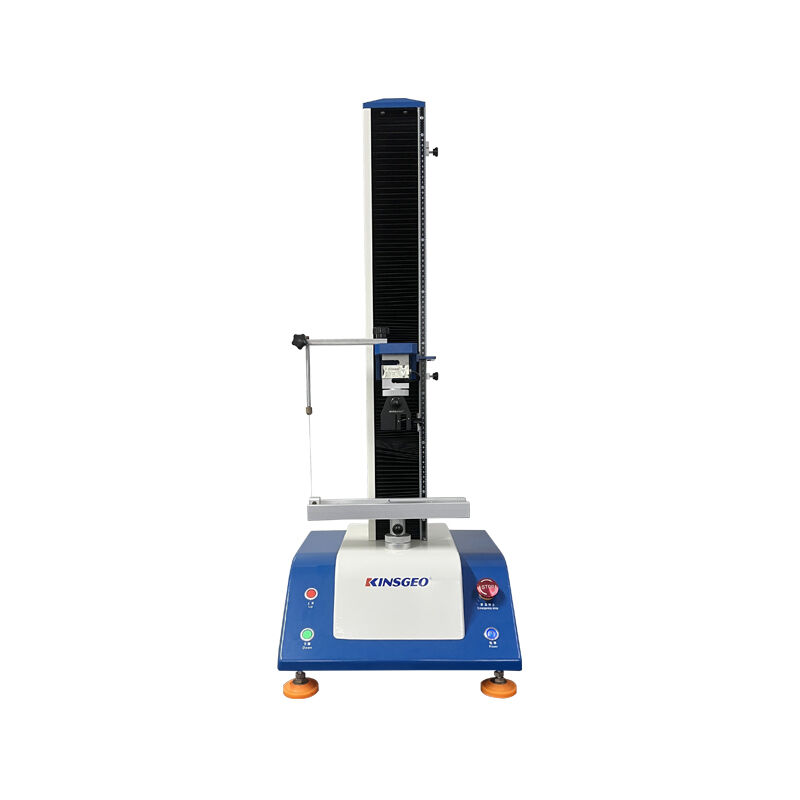

Product Images
