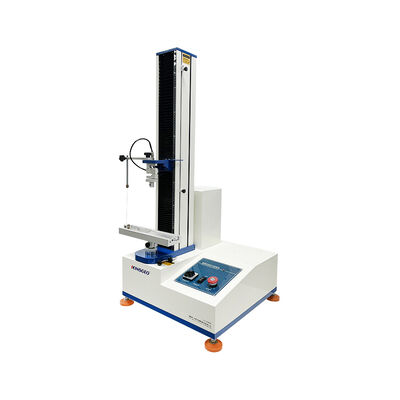

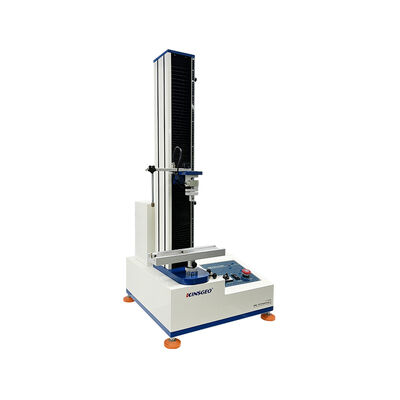

High-precision Peel Strength Tester with 0.5-500mm/min Adjustable Test Speed and 5KG Test Capacity Universal Testing Machine

Large Image : High-precision Peel Strength Tester with 0.5-500mm/min Adjustable Test Speed and 5KG Test Capacity Universal Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1065

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/3800/SET
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Weight:	500 Kg	Bending Angle:	0 - 180 Degree
Interface:	USB Interface	Crosshead Speed Range:	0.001-500 Mm/min
Software Features:	The Units Select G, Kg, N, KN, LB	Loading Accurancy:	2.4KN/s +/- 200N/s
Usage:	Compression Strength Tester	Test Speed:	0.1-500mm/min Selectable
Range Of Speed:	0.5-500mm/min	Aplication:	Rubber ,plastic ,nylon ,leather And Etc
Round Angle:	R1-1.5mm	Stroke:	650mm
Machine Accuracy:	Over +/-0.5%	Power:	Electronic
Product Name:	Computer Control Single Column Universal Testing Machine	Power Supply:	220V 50Hz
Application:	Universal Tester	Standard:	ASTM E8/A370/ISO 75001
Warranty:	1 Year	Accuracy:	+/-0.5%
Operation:	Computer Windows Operation
Highlight:	High-precision Peel Strength Tester , 0.5-500mm/min adjustable test speed Universal Testing Machine , 5KG test capacity Adhesion Test Equipment

High-Precision Peel Strength Tester

This high-precision peel strength tester is engineered for comprehensive adhesion performance evaluation across various adhesive products and substrate materials.

Applications

Adhesive tapes and self-adhesive labels
Protective films and release papers
Release films and substrate tensile strength

Testing Capabilities

90° peel testing
180° peel testing
Release force testing
Pressure and tension tests with professional software

Technical Specifications

Test Resolution	0.5g/25mm
Accuracy Class	0.5
Test Capacity	5KG
Test Speed Range	0.5-500mm/min
Key Components	High-precision American sensor, servo motor and driver

Control & Safety Features

Full digital closed-loop control system
Automatic return function
Overload protection and safety limit features
Computer control and manual jog operation modes
High accuracy in force, speed, and displacement control

Compliance Standards

ASTM D3330, FINAT, GB/T 2792, PSTC

Customization & Applications

Custom fixtures are available to meet diverse testing requirements. This instrument is an ideal quality control solution for adhesive and electronic material manufacturers, significantly enhancing quality assurance in the electronic material industry.
