Spring Tensile and Compression Integrated Universal Testing Equipment

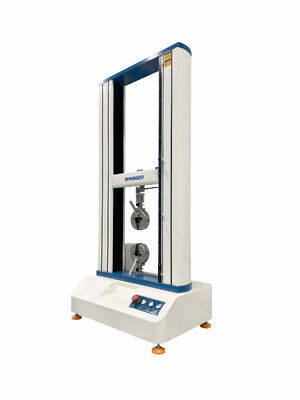

The 1000N Electronic Double-Column Adhesive Cross Shear Force Testing Instrument is a computerized universal material testing machine designed for comprehensive material analysis and quality control applications.
Applications
This versatile testing instrument is widely used for evaluating various materials including adhesives, self-adhesive materials, hardware components, metals, rubber and plastics, footwear, leather, textiles, insulators, wires and cables, terminals, and more. It performs multiple test types including tensile, shear, tear, peel, compression, bending, shear resistance, and three-point bending tests.
Key Features
- Double-column structure provides exceptional stability and rigidity, ideal for testing applications requiring 1000N capacity and above
- Constructed with paint-coated aluminum blanking plate for durability
- High-precision, low-resistance ball screws with zero clearance and guide rods ensure efficient loading and structural rigidity
- Panasonic servo motor delivers high efficiency, stable transmission, and low noise operation with 0.5% speed accuracy
- Business computer with specialized testing software for complete parameter control, data acquisition, analysis, and reporting
Included Accessories
Custom grips tailored to customer sample requirements, comprehensive software for test control, data acquisition, and report generation, English operation tutorial video, table computer selection, and extended measurement capabilities as requested.
Design Standards Compliance
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ISO 527, ASTM D628, ASTM D5459, ASTM D5458, ASTM D5748, ASTM D-882, ASTM D 1922, ASTM D638, ASTM D412
Technical Specifications
| Model |
KJ-1066A |
| Speed Range |
0.5-500mm/min |
| Motor |
Japan Panasonic Servo Motor |
| Capacity Options |
100~2000 kg |
| Resolution |
1/250,000 |
| Effective Testing Space |
600mm MAX |
| Accuracy |
±0.5% |
| Operation Method |
Windows XP, Win7 operation, computer control |
| Standard Accessories |
Computer, printer, system operation manual |
| Optional Accessories |
Customized clamps, force sensors, printer, operation manual |
| Weight |
400KG |
| Dimensions |
80*50*150 cm (W*D*H) |
| Power Requirements |
1PH, AC220V, 50/60Hz |
| Safety Features |
Upper and lower stroke protection, force protection system, emergency stop device |
