Programmable LCD Touch Screen Static Shear Force Tester with Stainless Steel SUS 304 and Customizable Temperature Range

Large Image : Programmable LCD Touch Screen Static Shear Force Tester with Stainless Steel SUS 304 and Customizable Temperature Range

Product Details:

Place of Origin:	CHINA
Brand Name:	KINSGEO
Certification:	ISO, CE and etc.
Model Number:	KJ-2091

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Plywood box
Delivery Time:	20 days after order
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	Programmable Temperature & Humidity Test Chamber	Control Range Of Temperature:	-70℃～150℃ （Customizable）
Control Range Of Humidity:	RH20%～98%	Controller:	Programmable LCD Touch Screen
Temperature Fluctuation:	±0.5℃	Inside Material:	Stainless Steel SUS 304 #
Size:	Customized	Warranty:	12 Months
Highlight:	Programmable LCD Touch Screen Static Shear Force Tester , Stainless Steel SUS 304 Adhesive Retention Tester , Customizable Temperature Range Tape Shear Force Testing Machine

Tape Constant Temperature and Humidity Static Shear Force Testing Machine

Reference Standards: GB/T4851, CNS-11887, 11888, PSTC-7

The KJ-6014D non-contact high/low temperature adhesive retention tester is designed for comprehensive testing of adhesive performance under controlled environmental conditions. This advanced testing equipment is widely utilized across various adhesive product industries including adhesive tapes, protective films, self-adhesive materials, labels, foam materials, and adhesive formulations.

Application and Testing Methodology

This oven-type adhesive retention force tester evaluates the adhesive retention capability of tapes when applied to test plates under precisely controlled temperature and humidity conditions. The equipment measures the tape's resistance to displacement along its length direction when subjected to specified gravitational forces. Adhesive retention performance is quantified by measuring the time required for the test specimen to move a predetermined distance or completely detach within a defined time period.

Technical Specifications

Internal Dimensions	507560 cm
Volume	225 L
Temperature Range	-40°C to 150°C
Humidity Range	20% to 98% RH
Temperature/Humidity Distribution Accuracy	±2°C / ±3% RH
Temperature/Humidity Stability	±0.3°C / ±2.5% RH
Heating Speed	-20°C to 100°C in approximately 25 minutes
Cooling Speed	20°C to -40°C in approximately 60 minutes
Temperature Display	0.1°C unit display

Freezing System Components

Compressor: Original imported fully sealed compressor from France
Refrigerant: Environmentally friendly refrigerant
Condenser: Air-cooled condenser
Additional Components: Desiccant, oil separator, high and low pressure repair valve, protection switch
Expansion System: Capacity-controlled refrigeration system

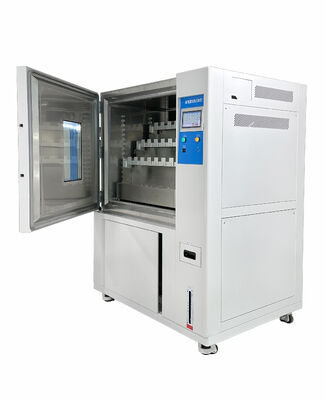

Product Images
