High-speed Peel Strength Testing Machine with Adjustable Angles and Multi-Standard Compliance for Tape Peeling Tests

Large Image : High-speed Peel Strength Testing Machine with Adjustable Angles and Multi-Standard Compliance for Tape Peeling Tests

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE
Model Number:	KJ-1065A-H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/2900/SET
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Power:	Electronic,220V	Usage:	Tensile Testing Machine,Strength Testing Machine,Textile Testing Instrument,Universal Testing Machine
Product Name:	Tape Peeling Tester/Adhesive Peeling Test Equipment	Warranty:	1 Year
Application:	Adhesive Tape Tester	Standard:	CNS.4158,IEC68,GB/T
Measuring Range:	5kg,100N,10~1000KN	Load:	0~100kg
Weight:	About 145 Kg	Capacity:	100
Power Supply:	AC220V 10% 50HZ	Dimention:	6503301730mm
Function:	Adhesive Tape Test Machine	Accuracy:	±0.5%
Accuracy Class:	0.5 Class	Max Load:	1000N
Speed Of Test:	0.01-500mm/min
Highlight:	High-speed Peel Strength Testing Machine , Adjustable angles Peel Adhesion Test Equipment , Multi-standard Tape Peeling Tester

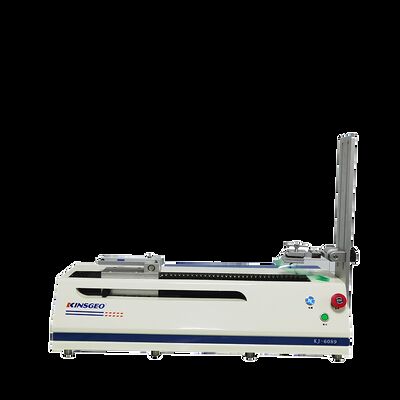

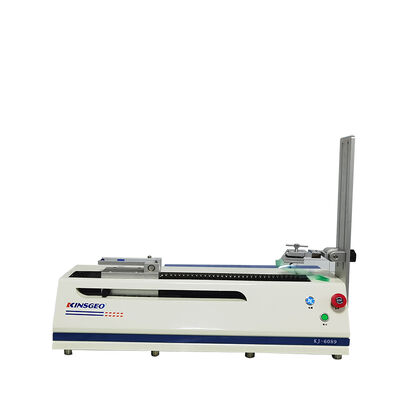

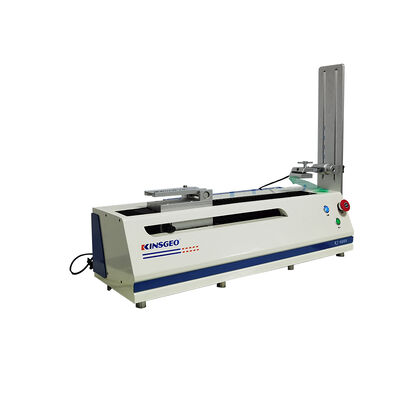

New Horizontal High-Speed Peel Strength Testing Machine

This universal tensile testing machine complies with PSTC, ASTM, TLMI, FINAT and AFERA standards, supporting both 90° and 180° applications. Designed as an enhanced solution for peel force and tape removal force testing, it was developed to meet global demands for precise adhesion measurement.

Key Features

Compatible with data collection systems and KINSGEO operation software for comprehensive data management
Adjustable stretching speed (100mm/min - 30000mm/min)
Configurable testing angles (90° to 180°)
Multiple load cell options available for different testing requirements

Technical Specifications

Parameter	Value
Voltage	AC 220V / 50Hz
Dimensions (H×W×D)	850mm × 1200mm × 350mm
Effective Travel	700mm
Weight	65KG
Load Cell Options	2KG, 5KG, 10KG, 20KG

Recommended Load Cells

Adhesion force testing: 10KG or 5KG
Peel force testing: 2KG or 5KG

Compliance Standards

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.

Manufacturer: Guangdong KeJian Testing Instrument Co., LTD.

Founded in 2003, we are a professional manufacturer specializing in precision testing instruments and comprehensive test solutions. With our professional R&D team and excellent production management, we continuously provide customers with high-quality products and services, establishing ourselves as a leading instrumentation supplier in the industry.
