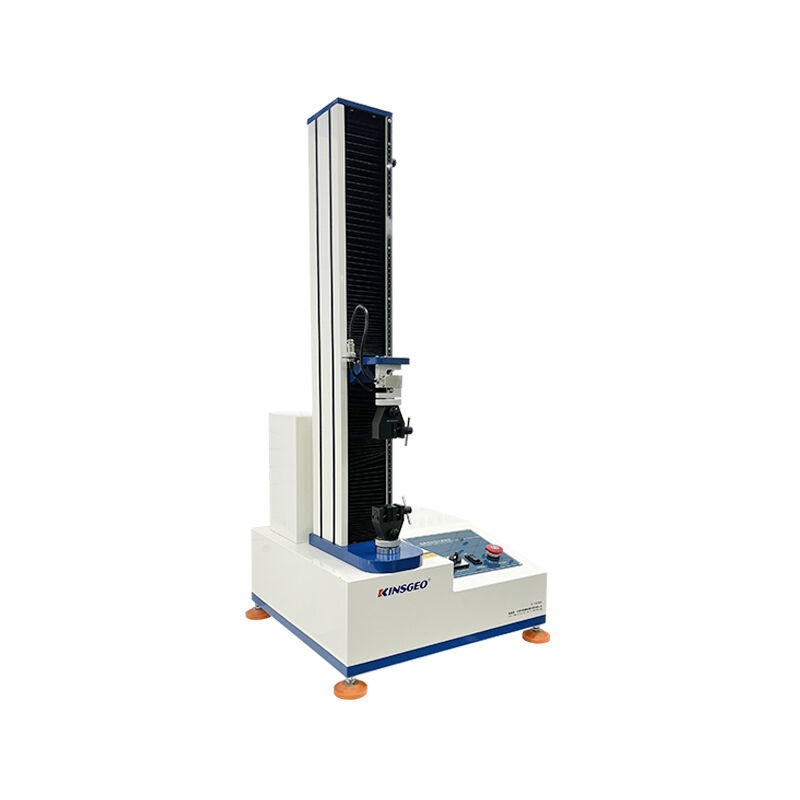

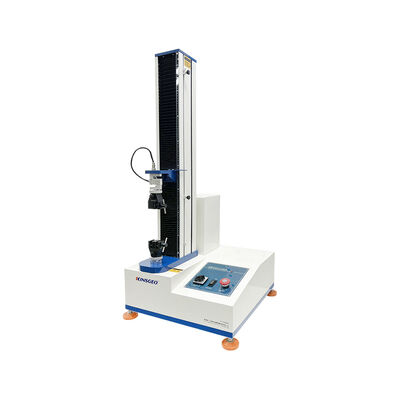

Lab High Precision Tensile Testing Instrument

Large Image : Lab High Precision Tensile Testing Instrument

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1065

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/4100/SET
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Weight:	50 Kg	Peeling Angle:	0 - 180 Degree
Interface:	USB Interface	Crosshead Speed Range:	0.001-500 Mm/min
Software Features:	The Units Select G, Kg, N, KN, LB	Loading Accurancy:	2.4KN/s +/- 200N/s
Usage:	Compression Strength Tester	Test Speed:	0.1-500mm/min Selectable
Range Of Speed:	0.5-500mm/min	Aplication:	Pressure-Sensitive Adhesive Label Peel Strength Tester
Round Angle:	R1-1.5mm	Stroke:	650mm
Machine Accuracy:	+/-0.5%	Power:	Electronic
Product Name:	Computer Control Single Column Universal Testing Machine	Power Supply:	220V 50Hz
Application:	Universal Tester	Standard:	ASTM E8/A370/ISO 75001
Warranty:	1 Year	Operation:	Computer Windows Operation
Highlight:	High Precision Tensile Testing Instrument , Lab Tensile Testing Instrument , Lab High Precision Tensile Testing Instrument

Pressure-Sensitive Adhesive Label Peel Strength Tester

Product Description

This precision testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack, and fatigue cycling tests on various materials including metals, tapes, composites, alloys, rigid plastics, films, elastomers, textiles, paper, board, and finished products.

Key Features

Computer-controlled operation with specialized testing software for complete parameter control, data collection, analysis, and reporting
Stable performance with high accuracy (±0.5%) using USA-made high-precision load cells
Intuitive software interface with powerful functionality for easy operation
Comprehensive testing capabilities for adhesive strength evaluation

Standard Accessories

Customizable grips to accommodate various sample types
Specialized peeling tools for tape and film industry applications
Complete software package for test control, data acquisition, and report generation
English operation tutorial video
Optional table and computer configurations available

Advanced Software Features

Windows-based platform with intuitive dialog form interface
Single-screen operation for efficient workflow
Multi-language support (Simplified Chinese, Traditional Chinese, English)
Flexible test sheet configuration options
Real-time data display and multiple curve comparison capabilities
Unit conversion between metric and British measurement systems
Automatic calibration and user-defined test methods
Advanced data analysis functions with automatic graph scaling

Technical Specifications

Design Standards	ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632
Model	KJ-1065 B
Speed Range	50-500mm/min
Motor Type	AC Motor
Capacity Options	1, 2, 5, 10, 20, 50, 100, 200, 500kg (optional)
Resolution	1/150,000
Testing Space	120mm MAX
Accuracy	±0.5%
Operation System	Windows
Standard Accessories	Machine, peel tools, system operation manual
Weight	80KG
Dimensions (WDH)	5858125cm
Power Requirements	1PH, AC220V, 50/60Hz
Safety Features	Upper/lower stroke protection, force protection system, emergency stop device
