Programmable Temperature Humidity Test Chamber with Customizable Temperature Range High Precision and Wide Humidity Range

Programmable Temperature Humidity Test Chamber with Customizable Temperature Range High Precision and Wide Humidity Range
Programmable Temperature Humidity Test Chamber with Customizable Temperature Range High Precision and Wide Humidity Range Programmable Temperature Humidity Test Chamber with Customizable Temperature Range High Precision and Wide Humidity Range

Large Image :  Programmable Temperature Humidity Test Chamber with Customizable Temperature Range High Precision and Wide Humidity Range

Product Details:
Place of Origin: CHINA
Brand Name: KINSGEO
Certification: ISO, CE and etc.
Model Number: KJ-2091
Document: KJ-2091 Programmable Temper...er.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 20 days after order
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Programmable Temperature & Humidity Test Chamber Control Range Of Temperature: -70℃～150℃ （Customizable）
Control Range Of Humidity: RH20%～98% Controller: Programmable LCD Touch Screen
Temperature Fluctuation: ±0.5℃ Inside Material: Stainless Steel SUS 304 #
Size: Customized Warranty: 12 Months
Highlight:

Customizable Temperature Range Test Chamber

,

High Precision Humidity Test Chamber

,

Wide Humidity Range Environmental Chamber

Programable Constant Temperature And Humidity Test Chamber
Stainless Steel Temperature Humidity Test Chamber/ High Low Temperature Control Cabinet
Key Features
  • High precision microcomputer touch temperature and humidity controller with platinum resistance for stable temperature and wind speed control
  • KJ-2091 constant temperature humidity tester provides well-distributed, precise and steady temperature & humidity control
  • Completely independent system for testing in high temperature, low temperature and constant temperature & humidity environments
Product Description
Simulates different environmental conditions to test material performance including resistance to heat, dryness, humidity and cold, helping define material characteristics.
Technical Specifications
Model A B C D E F
Size of inner box (W*H*D) 40*50*40 cm 50*60*50 cm 40*75*60 cm 60*85*80 cm 100*100*80 cm 100*100*100 cm
Size of outer box (W*H*D) 92*138*108 cm 102*146*116 cm 102*162*126 cm 113*172*148 cm 150*186*139 cm 158*188*168 cm
Volume of inner box 80L 150L 225L 408L 800L 1,000L
Control range of temperature and humidity A:-20℃～150℃ B:-40℃～150℃ C:-60℃～150℃ D:-70℃～150℃ RH20%～98%
Performance Fluctuation: ±0.5℃; ±2.5%RH
Deviation: ±0.5℃～±2℃; ±3%RH(＜75%RH); ±5%RH(≥75%RH)
Accuracy: ±0.3℃; ±2.5%RH
Controller brand Customized
Material Interior: #SUS 304 Steel plate
Exterior: White&Blue
Thermal insulation material High temperature and high density vinyl chloride foam insulation material
System wind path circulation Centrifugal fan - wide band forced air circulation (upper in, lower out)
Refrigerating method Single stage mechanical compression refrigeration
Refrigerating machine Fully enclosed piston type compressor from TAIKANG French
Refrigerant R4O4A/Dupont environmental refrigerant(R23+R4O4)
Condensation method Air or water cooled
Heater Nickel-chromium electric heating wire heater
Humidifier Semi-enclosed steam humidification
Water supply method Fully automatic circulating water supply (manual watering)
Standard equipment View window (double-layer hollow tempered glass)*1, 50mm test hole position and left*1, PL box light*1, partition*2, dry and wet ball gauze*1 fuse*3 rubber soft plug *1, power cord*1
Safety device No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse fault warning system
Power 1φ, 220V AC±10% 50Hz 3φ, 380V AC±10% 50Hz

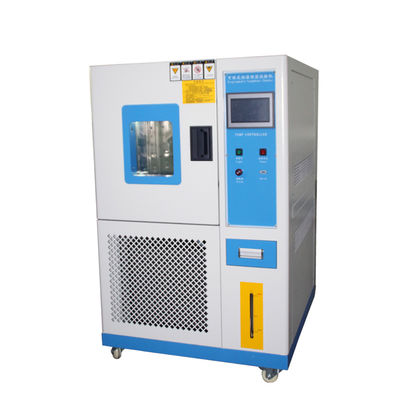

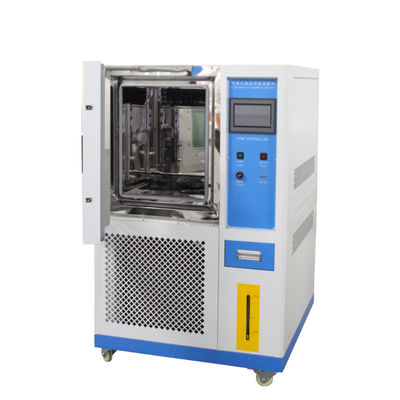

Product Images
Programmable Temperature Humidity Test Chamber with Customizable Temperature Range High Precision and Wide Humidity Range 0 Programmable Temperature Humidity Test Chamber with Customizable Temperature Range High Precision and Wide Humidity Range 1 Programmable Temperature Humidity Test Chamber with Customizable Temperature Range High Precision and Wide Humidity Range 2 Programmable Temperature Humidity Test Chamber with Customizable Temperature Range High Precision and Wide Humidity Range 3 Programmable Temperature Humidity Test Chamber with Customizable Temperature Range High Precision and Wide Humidity Range 4
KEJIAN Instrument Service
If you face any problems during testing, we promise to reply within 48 hours and provide solutions within 3 working days. We offer operation videos and English operation manuals, and can provide video conferencing support.
Onsite Service
  • Device installation
  • Equipment operation test technology training
  • Equipment calibration
  • Daily maintenance and maintenance of equipment
  • Free technical training for visiting factories
  • 24-hour online contact
  • Free software upgrades
Free Information
  • Product instruction
  • Product operation instruction/video
  • Experiment test (test application, test report)
Device Problem Handling
  • Social media 24 hours online communication
  • Mail seamless docking
  • Video conferencing
  • Artificial free door-to-door service
Frequently Asked Questions
Why Choose Us?
(1) Over 15 years of specialization in this testing field makes us professional.
(2) Located in Dongguan city - a world-class manufacturing hub.
(3) 12-month after-sales service with prompt problem resolution.
Are you a factory?
Yes, we are.
What's the product delivery time?
Within 10 work days after deposit received. If we have stock, the delivery time will be greatly shortened.
What's your terms of trade?
We accept EXW, FOB, CIF, CNF and other standard trade terms.
