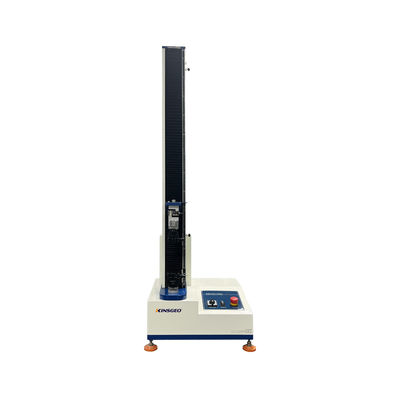

Computer-controlled Single Column Peel Strength Testing Machine with 1200mm Stroke and 220V Power

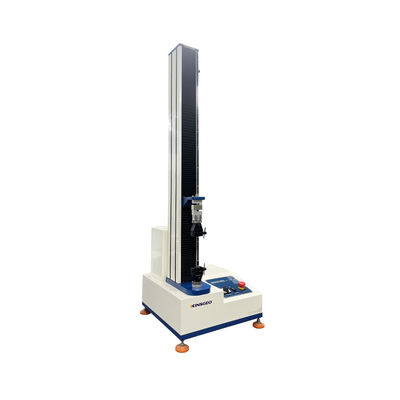

Large Image : Computer-controlled Single Column Peel Strength Testing Machine with 1200mm Stroke and 220V Power

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1069A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/4100/SET
Packaging Details:	wooden case packing
Delivery Time:	15 work days
Payment Terms:	T/T,D/A
Supply Ability:	60Sets/month

Contact Now

Detailed Product Description

Power:	Electronic,AC 220 V	Usage:	Single Column Tape Peeling Testing Machine
Weight:	60kg	Product Name:	Computer Control Single Column Peeling Strength Tester
Power Supply:	220V	Application:	Universal Tester
Standard:	BS.EN.ASTM	Motor:	Panasonic Servo Motor
Warranty:	1 Year	Accuracy:	+/-0.5%
Name:	Universal Leather Tensile Strength Test Machine	Stroke:	850 Mm (contain Clamps)
Resolution:	1/250	Test Space:	120mmMAX
Operation:	Computer Windows Operation
Highlight:	Computer-controlled Peel Strength Testing Machine , 1200mm Stroke Peel Adhesion Test Equipment , 220V Power Universal Testing Machine

Heightened Single-column Peel Strength Testing Machine

This precision tape peeling testing machine delivers reliable performance for quality control and material testing applications.

Key Features

Computer-controlled operation with specialized testing software for comprehensive parameter control, data collection, analysis, and reporting
Stable speed, high accuracy, powerful software functionality, and user-friendly operation
Equipped with USA-manufactured high-precision load cell for superior measurement accuracy

Software Capabilities

Windows-based platform with intuitive dialog-based parameter configuration
Single-screen operation eliminates screen switching
Trilingual support: Simplified Chinese, Traditional Chinese, and English
Customizable test sheet templates
Real-time test data display
Multi-curve comparison through translation or contrast modes
Multiple measurement unit options with metric/imperial conversion
Automatic calibration function
User-defined test method capability
Advanced data analysis functions
Automatic magnification for optimal graphic display

Technical Specifications

Design Standards	ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632
Model	KJ-1069
Speed Range	0.5~5000mm/min
Motor	Japan Panasonic Servo Motor
Stroke	1200mm (including grips)
Capacity Options	1, 2, 5, 10, 20, 50, 100, 200, 500kg (optional)
Resolution	1/250,000
Effective Testing Space	120mm MAX
Accuracy	±0.5%
Operation Method	Windows operation
Accessories	Two pair grips, software
Weight	80KG
Dimensions	(W×D×H) 58×58×125cm
Power	1PH, AC220V, 50/60Hz
Safety Features	Upper/lower stroke protection, force protection system, emergency stop device

Tag:

Contact Person: Miss. Silivia Zhang

Tel: 86-13925519875

Fax: 86-0769-28638013
