Microcomputer Control Electronic Universal Test Machine with AC220V 50Hz Power ASTM E8/A370/ISO 75001 Standard and 650mm Stroke

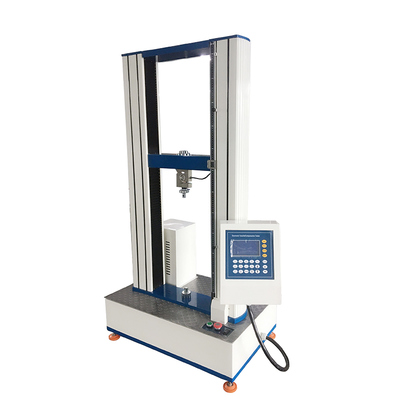

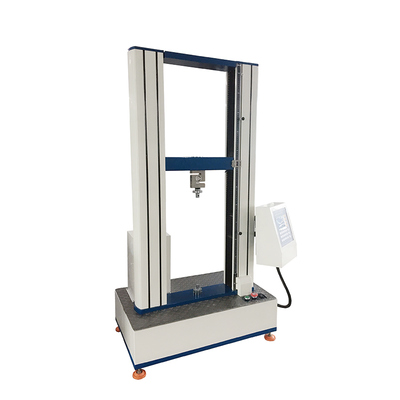

Large Image : Microcomputer Control Electronic Universal Test Machine with AC220V 50Hz Power ASTM E8/A370/ISO 75001 Standard and 650mm Stroke

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1066C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/6800/SET
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Power:	AC220V 50Hz	Usage:	Universal Testing Machine,Tensile Testing Machine,Rubber Tensile Tester
Weight:	135Kg	Product Name:	Double Column
Power Supply:	220V 50Hz	Application:	Universal Tester
Standard:	ASTM E8/A370/ISO 75001	Motor:	Panasonic Servo Motor
Warranty:	1 Year	Accuracy:	+/-0.5%
Name:	Universal Leather Tensile Strength Test Machine,electronic Universal Testing Machine	Capacity:	20
Stroke:	650mm(excluding Clamp)	Measuring Accuracy:	The Value ±1%/ The Value±0.5%
Operation:	Computer Windows Operation
Highlight:	AC220V 50Hz Electronic Universal Test Machine , ASTM E8/A370/ISO 75001 Universal Testing Machine , 650mm Stroke Tensile Testing Machine

Microcomputer Control Electronic Universal Test Machine

Project Introduction

The domestic microcomputer control electronic universal test machine was developed in the early 1990s. By incorporating advanced foreign technology, our company has significantly elevated the technical capabilities of our products to a new level.

Applications

This versatile testing machine is widely used for tensile, compression, and bending shear mechanical performance tests on both metallic and non-metallic materials. With its extensive range of accessories, it can also perform mechanical tests on profiles and components. It has excellent application potential in testing ropes, belts, wires, rubber, plastics, and similar materials.

Quality supervision and control
Teaching and research applications
Aerospace industry testing
Steel and metallurgy testing
Automotive component testing
Construction materials evaluation

Compliance Standards

The machine meets national standards GB/T228.1-2010 (Room Temperature Extension Test Method of Metal Materials) and GB/T7314-2005 (Metal Compression Test Method). It supports data processing according to GB, ISO, ASTM, DIN and other international standards, ensuring compliance with user requirements and specified standards.

GB16491-2008
HGT 3844-2008
QBT 11130-1991
GB 13022-1991
HGT 3849-2008
GB 6349-1986
GB/T 1040.2-2006 2411
ISO 4587
ISO/TS 11405
ASTM E4
BS 1610
DIN 51221
ISO 7500
EN 10002
ISO 527
ASTM D628
ASTM D638
ASTM D412

Technical Specifications

Model	KJ-1066C
Range of speed	50-500mm/min
Motor	AV Servo Motor
Capacity choice	2000KG
Resolution	1/150,000
Effective testing space	400mm MAX
Accuracy	±1%
Operation method	Windows XP/Win7 operation, computer control
Standard accessories	Computer, printer, system operation manual
Optional accessories	Customized clamps, force sensors, additional printers, operation manuals
Weight	400KG
Dimensions (WDH)	8050150cm
Power	1PH, AC220V, 50/60Hz
Stroke protection	Upper and lower protection, prevents over preset
Force protection	System setting
Emergency stop device	For handling emergencies
