High Precision 100L Temperature Humidity Test Chamber with Wide Temperature Range and High Humidity Range

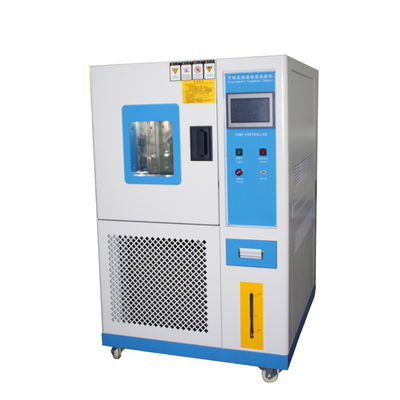

Large Image : High Precision 100L Temperature Humidity Test Chamber with Wide Temperature Range and High Humidity Range

Product Details:

Place of Origin:	CHINA
Brand Name:	KINSGEO
Certification:	ISO, CE and etc.
Model Number:	KJ-2091

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Plywood box
Delivery Time:	10 days after order
Payment Terms:	T/T,Western Union
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Product Name:	Programmable Temperature & Humidity Test Chamber	Control Range Of Temperature:	-70℃～150℃ （Customizable）
Control Range Of Humidity:	RH20%～98%	Controller:	Programmable LCD Touch Screen
Temperature Fluctuation:	±0.5℃	Inside Material:	Stainless Steel SUS 304 #
Size:	Customized	Warranty:	12 Months
Highlight:	High Precision Temperature Humidity Test Chamber , Wide Temperature Range Environmental Test Chamber , High Humidity Range Climate Test Chamber

100L 85°C 85% Humidity Material Aging Simulation Test Chamber

Stainless Steel Temperature & Humidity Test Chamber

High-precision constant temperature and humidity test chamber for material performance testing under various environmental conditions.

Key Features

High precision microcomputer touch temperature and humidity controller with platinum resistance for stable temperature control
Precisely controlled and evenly distributed temperature & humidity environment
Independent systems for high temperature, low temperature, and constant temperature & humidity testing

Product Description

This chamber simulates different environmental conditions to test material performance including heat resistance, dry resistance, humidity resistance, and cold resistance, helping to define material characteristics.

Technical Specifications

Model	A	B	C	D	E	F
Inner Box Dimensions (W×H×D)	40×50×40 cm	50×60×50 cm	40×75×60 cm	60×85×80 cm	100×100×80 cm	100×100×100 cm
Outer Box Dimensions (W×H×D)	92×138×108 cm	102×146×116 cm	102×162×126 cm	113×172×148 cm	150×186×139 cm	158×188×168 cm
Inner Box Volume	80L	150L	225L	408L	800L	1,000L
Temperature & Humidity Range	A:-20℃～150℃ B:-40℃～150℃ C:-60℃～150℃ D:-70℃～150℃ RH20%～98%
Performance	Temperature fluctuation: ±0.5℃; Humidity fluctuation: ±2.5%RH
Temperature & Humidity Deviation	±0.5℃～±2℃; ±3%RH(＜75%RH); ±5%RH(≥75%RH)
Control Accuracy	±0.3℃; ±2.5%RH
Controller	Customized
Material	Interior: #SUS 304 Steel plate; Exterior: White & Blue
Thermal Insulation	High temperature and high density vinyl chloride foam insulation material
Air Circulation	Centrifugal fan - wide band forced air circulation (upper in, lower out)
Refrigeration	Single stage mechanical compression refrigeration
Compressor	Fully enclosed piston type compressor (TAIKANG French)
Refrigerant	R4O4A/Dupont environmental refrigerant(R23+R4O4)
Condensation	Air or water cooled
Heater	Nickel-chromium electric heating wire heater
Humidifier	Semi-enclosed steam humidification
Water Supply	Fully automatic circulating water supply (manual watering)
Standard Equipment	View window (double-layer hollow tempered glass)×1, 50mm test hole position and left×1, PL box light×1, partition×2, dry and wet ball gauze×1 fuse×3 rubber soft plug ×1, power cord×1
Safety Features	No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse fault warning system
Power	1φ, 220V AC±10% 50Hz 3φ, 380V AC±10% 50Hz

Customer Support Services

48-hour response time for technical issues
Solution provided within 3 working days
Operation videos and English manuals available
Video conference support
Onsite services including installation, operation training, calibration, and maintenance
Free technical training for visiting factories
24-hour online contact
Free software upgrades
Comprehensive documentation including product instructions, operation guides, and test reports
Multiple support channels: social media, email, video conferencing, and on-site service

Frequently Asked Questions

Why Choose Us?

15+ years of specialization in testing equipment
Located in Dongguan - a world-class manufacturing hub
12-month after-sales service with prompt problem resolution

Are you a factory?

Yes, we are the manufacturer.

What's the delivery time?

Within 10 working days after deposit received. Stock availability may shorten delivery time.

What are your trade terms?

We accept EXW, FOB, CIF, CNF and other standard trade terms.
