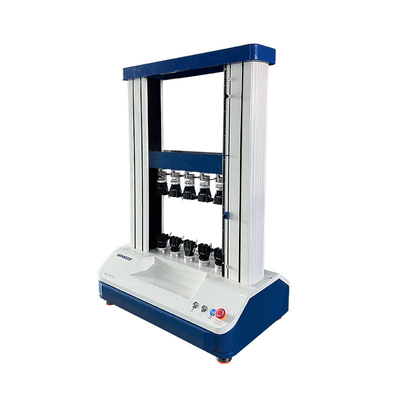

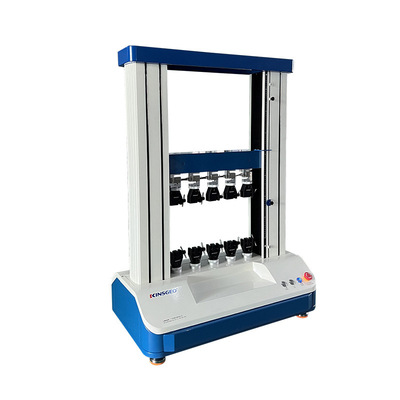

Multi-station Synchronization Film Tensile Broke Strength Testing Machine For Laboratory Reach

Multi-station Synchronization Film Tensile Broke Strength Testing Machine For Laboratory Reach
Multi-station Synchronization Film Tensile Broke Strength Testing Machine For Laboratory Reach Multi-station Synchronization Film Tensile Broke Strength Testing Machine For Laboratory Reach

Large Image :  Multi-station Synchronization Film Tensile Broke Strength Testing Machine For Laboratory Reach

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE/ISO
Model Number: KJ-1066
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/6800/SET
Delivery Time: 15 work days
Payment Terms: T/T,
Supply Ability: 30Sets/month
Detailed Product Description
Power: Electronic,220V/50HZ Usage: 5 Unit Tape Peeling Strength Tester
Product Name: Tape Peeling Tester/Adhesive Peeling Test Equipment Warranty: 1 Year
Application: Adhesive Tape Tester Standard: GB/T,BS 5131
Measuring Range: 10~1000KN Load: 5 Pieces
Weight: 630kg Capacity: 100
Power Supply: AC220V 10% 50HZ Function: Adhesive Tape Test Machine
Accuracy: ±0.5% Accuracy Class: 0.5 Class
Max Load: 1000N Speed Of Test: 0.01-500mm/min

Multi-station synchronization five unit adhesive peeling strength testing machine for laboratory

Product details

Motor Japan Servo Motor
Range of speed 0.5~1000mm/min
Capacity choice 5~5000KG optional
Resolution 1/250,000
Effective testing space 400mm MAX
Accuracy ±0.5%
Weight 400KG
Dimention 80*50*150cm
Product Keywords tension fatigue testing machine,tension dynamometer,tension compression testing machine

KJ-1066 Universal tensile testing machine

Uses

This machine also known as a materials testing machine , is applicable to testing tensile, compression,bending,peel, shearing force, peeling force, modulus of elasticity,and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable,leather,package,tape,

film,solar cell,etc.

Character

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficient and structure rigidity.

2. Use servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be control in 0.5%.

3. That using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

Accessories

1.Suitable Grips that meet customer sample need.

2.Software for test control,data acquisition and report.

3.English operation teach video.

4.Table computer is select.

5.Extend meter as customer request.

Multi-station Synchronization Film Tensile Broke Strength Testing Machine For Laboratory Reach 0
