Product Details:
Payment & Shipping Terms:
|
Power: | Electronic,220V/50HZ | Usage: | Tape Peeling Strength Tester |
---|---|---|---|
Product Name: | Tape Peeling Tester/Adhesive Peeling Test Equipment,180 Degree Adhesive Peel Test Equipment | Warranty: | 1 Year |
Application: | Adhesive Tape Tester | Standard: | CNS.4158,SATRA PM123 |
Measuring Range: | 5kg | Load: | 0~100kg |
Weight: | About 145 Kg | Capacity: | 20 |
Power Supply: | AC220V 10% 50HZ | Dimention: | 650*330*1730mm |
Function: | Adhesive Tape Test Machine | Accuracy: | ±0.5% |
Accuracy Class: | 0.5 Class | Speed Of Test: | 0.01-500mm/min |
Highlight: | Label Adhesive Peeling Strength Testing Machine,High Accuracy Strength Testing Machine |
Specifications:
Capacity choice |
1,2,5,10 kg |
Stroke |
650mm(excluding clamp) |
Range of speed |
0.01~500mm/min |
Effective testing space |
1200mmMAX |
Accuracy |
±0.5% |
Operation method |
Windows operation |
Motor |
AC motor |
Accessories |
printer, system operation manual,pair of clamp |
Optional accessories |
stretcher, clamp |
Resolution |
1/500,000 |
Weight |
70kg |
Dimention |
(W×D×H)58×58×125cm |
Power |
AC220V, 50/60Hz |
Safety Device:
Stroke protection:Upper and lower protection, prevent over preset
Force protection:system setting
Emergency stop device:Handling emergencies.
Contact Person: Miss. Silivia Zhang
Tel: 86-13925519875
Fax: 86-0769-28638013

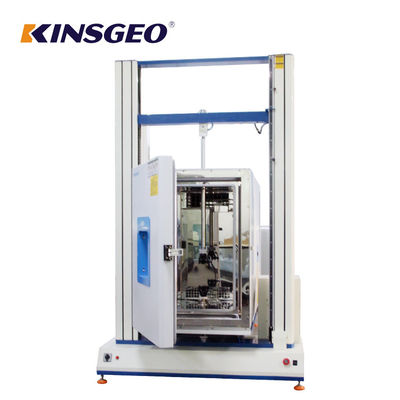

0.5~500mm/min 40*40*70cm High-low Temperature Tensile Chamber With ISO,CE Certifications
