Product Details:
Payment & Shipping Terms:
|
Power: | Electronic | Usage: | Temperature Humidity Test Chamber For Resisting Heat |
---|---|---|---|
Temperature Range: | -70 Degree ~ +100(150) Degree | Product Name: | Programmable Mini Temperature Humidity Climatic Test Chamber |
Humidity Range: | 20%~98%R.H.(10%-98%R.H / 5%~98%R.H Is The Specific Condition ) | Controller: | TEMI800 Digital Controller From South Korea |
Power Supply: | AC220V 10% 50HZ | Material: | SUS 304# Stainless Steel |
Compressor: | France "Tecumseh" | Standard: | GB10589-89 ; GB11158 |
Warranty: | 1 Year | Color: | White And Blue |
Accuracy / Volatility: | ±1.0 Degree ±2.0%R.H. / ±0.5 Degree ±2.0%R.H. | Inner Size: | 80L To 1000L |
Temperature Fluctuation: | ±0.2C | Temperature Uniformity: | ±1.5C |
Inside Material: | Stainless Steel SUS 304 # | ||
High Light: | Humidity Temperature Stability Chambers,80l Humidity Temperature Test Chamber,AC220V Temperature Humidity Test Chamber |

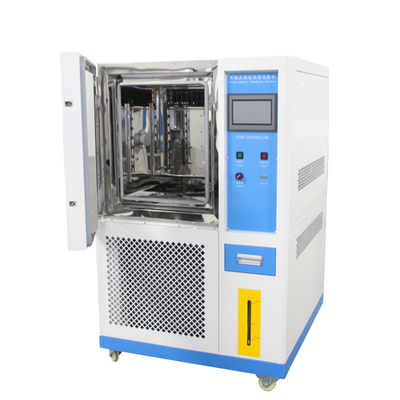

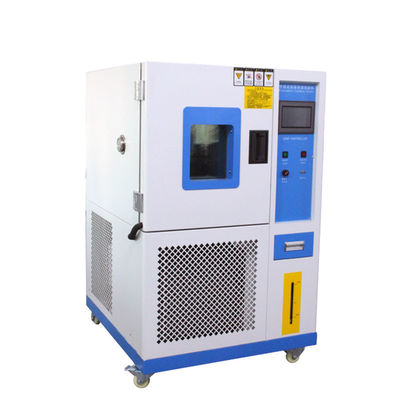

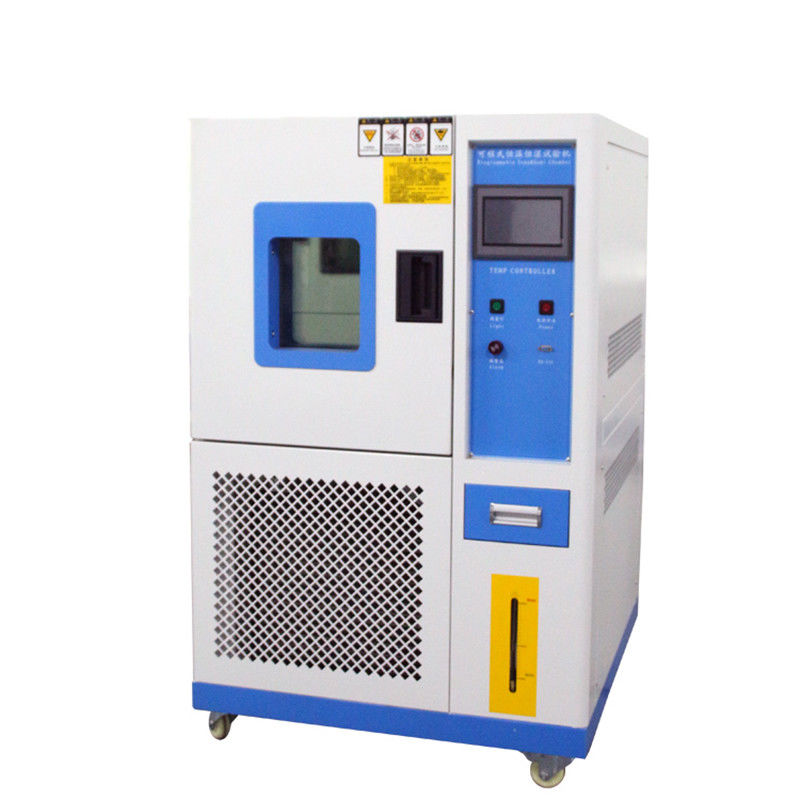

Uses
This chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Character
1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Model | A | B | C | D | E | F | |
Size of inner box (W×H×D) |
40×50×40 cm |
50×60×50 cm |
40×75×60 cm |
60×85×80 cm |
100×100×80 cm |
100×100×100 cm |
|
Size of outer box (W×H×D) |
92×138× 108cm |
102×146×116 cm |
102×162× 126cm |
113×172×148 cm |
150×186×139 cm |
158×188×168 cm |
|
Volume of inner box | 80L | 150L | 225L | 408L | 800L | 1,000L | |
Control range of temperature and humidity | A:-20℃~150℃ B:-40℃-~150℃ C:-60℃~150℃ D:-70℃~150℃ RH20%~98% | ||||||
Performance | Fluctuation of temperature and humidity | ±0.5℃;±2.5%RH | |||||
Deviation of temperature and humidity | ±0.5℃~±2℃;±3%RH(<75%RH);±5%RH(≥75%RH) | ||||||
Accuracy of control analysis | ±0.3℃;±2.5%RH | ||||||
Controller brand | Customized | ||||||
Material | Interior | #SUS 304 Steel plate | |||||
Exterior | White&Blue | ||||||
Thermal insulation material | High temperature and high density vinyl chloride for mate foam insulation material | ||||||
System wind path circulation | Centrifugal fan - wide band forced air circulation (upper in, lower out) |
||||||
Refrigerating method | Single stage mechanical compression refrigeration | ||||||
Refrigerating machine | Fully enclosed piston type compressor From TAIKANG French | ||||||
Refrigerant | R4O4A/Dupont environmental refrigerant(R23+R4O4) | ||||||
Condensation method | Air or water cooled | ||||||
Heater | Nickel-chromium electric heating wire heater | ||||||
Humidifier | Semi-enclosed steam humidification | ||||||
Water supply method | Fully automatic circulating water supply (manual Watering) | ||||||
Standard equipment | View window (double-layer hollow tempered glass)×1, 50mm test hole position and left×1, PL box light×1, partition×2, dry and wet ball gauze×1 fuse×3 rubber soft plug ×1, power cord×1 | ||||||
Safety device | No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse fault warning system | ||||||
Power | 1φ, 220V AC±10% 50Hz 3φ, 380V AC±10% 50Hz |
