Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic,220V/50HZ | Usage: | Tensile Testing Machine,Strength Testing Machine |
|---|---|---|---|
| Product Name: | Tape Peeling Tester/Adhesive Peeling Test Equipment | Warranty: | 1 Year |
| Application: | Adhesive Tape Tester | Standard: | CNS.4158 |
| Measuring Range: | 5kg | Load: | 0~100kg |
| Weight: | About 1100 Kg | Power Supply: | AC220V 10% 50HZ |
| Function: | Adhesive Tape Test Machine | Accuracy: | ±0.5% |
| Accuracy Class: | 0.5 Class | Max Load: | 1000N |
| Speed Of Test: | 0.01-500mm/min | ||
| High Light: | Acrylic Tape Peel Adhesion Test Equipment,Peel Adhesion Strength Testing Machine,1000N Peel Adhesion Tester |
||

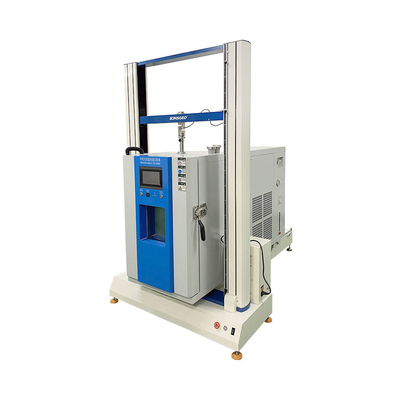

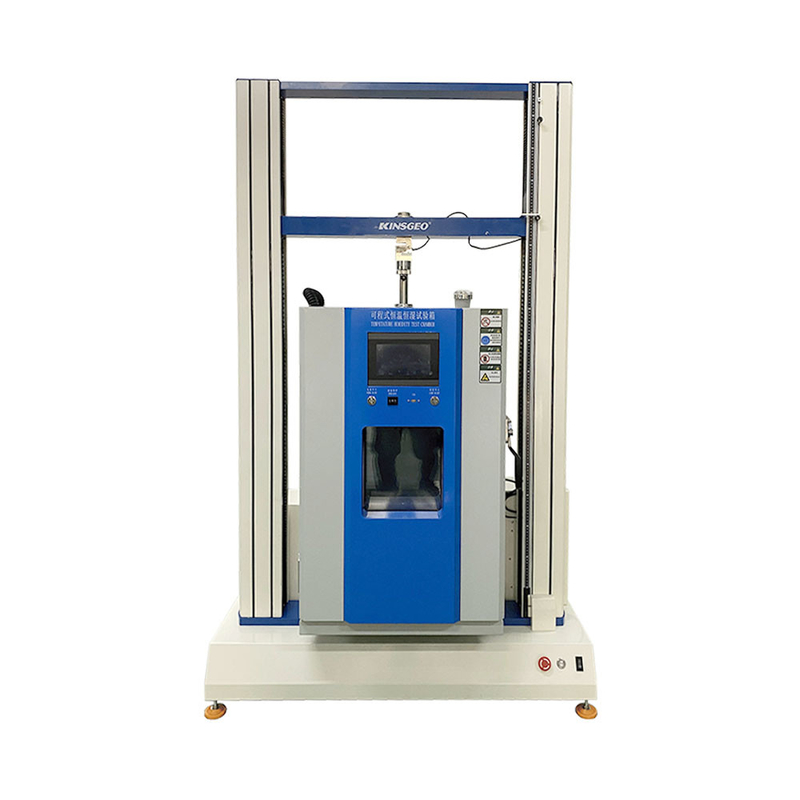

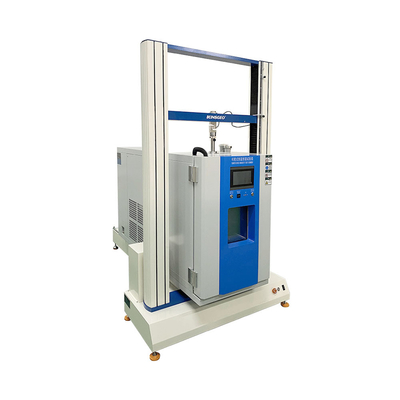

High Temperature Environment Simulation Chamber Acrylic Tape Stripping Strength Testing Machine
Use:
This machine combines high-low temperature tester with peel strength tester wonderfully. It can restrain the error brought by-changing environment between testing process.Setting up different fixtures can test 180&90 degree peeling strength, separating force,ect. for the adhesive material in the highlow temperature environment.This machine can be changed into programmable temperature&humidity tester according to your needs.
Character
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
4. Have steady performace, high accuracy, powerful software function and easy operation.
5. Use double insulated glass, user-friendly observing test; Adopt stainless steel frame and bladder, not only beauty but corrosion resistance.
Specifications
| Item | KJ-1067 High Low Temperature Tensile Strength Tester |
| Capacity | 2,5,10,20,50,100,200,500,1000kg |
| Model | KJ-1067 |
| Capacity | 2,5,10,20,50,100,200,500,1000kg |
| Unit | g,kg,N,KN,LB( switchover free) |
| Operation method | Windows operation |
| Resolution | 1/2500,000 |
| Accuracy | ≤0.5% |
| Testing speed | 0.5~1000mm/min |
| Stroke | 400,500,600mm(Height can be customized) |
| Test width | 40cm(can be changed by customer needs) |
| Test space | (L×W×H)40×40×70cm |
| Motor | servo motor |
| Kind of drive | high-precision ball screw |
| Weight | 200kg |
| Power | 1φ,220V/50Hz |
| Rate of work | 0.4KW(depend on motor model) |
| Clamp | customize by customer needs(tensile and compressive clamp) |
