Payment & Shipping Terms:
|Usage:||Environment Condition Testing Machine||System:||English Optional|
|Operation:||LCD Or PC||OEM Orde:||Acceptable|
|Environment Requirement:||5～30℃，stable Floor, Draughty,no Heat Source Radiation||Nozzle Qty:||1681-2601 Pcs|
|Temperatur Range:||-20～150℃ \ -30～150℃ \ -40～150℃ \ -50～150℃ \-60～150℃ \ -70～150℃||Heating Time:||Max Fastest 20℃/min（no-load）|
|Appearance:||Cold-roll Steel Sheets, Corner Circular Arc||Refrigerating Fluid:||R23\R404A|
|Key Words:||Constant Temperature Humidity Chamber|

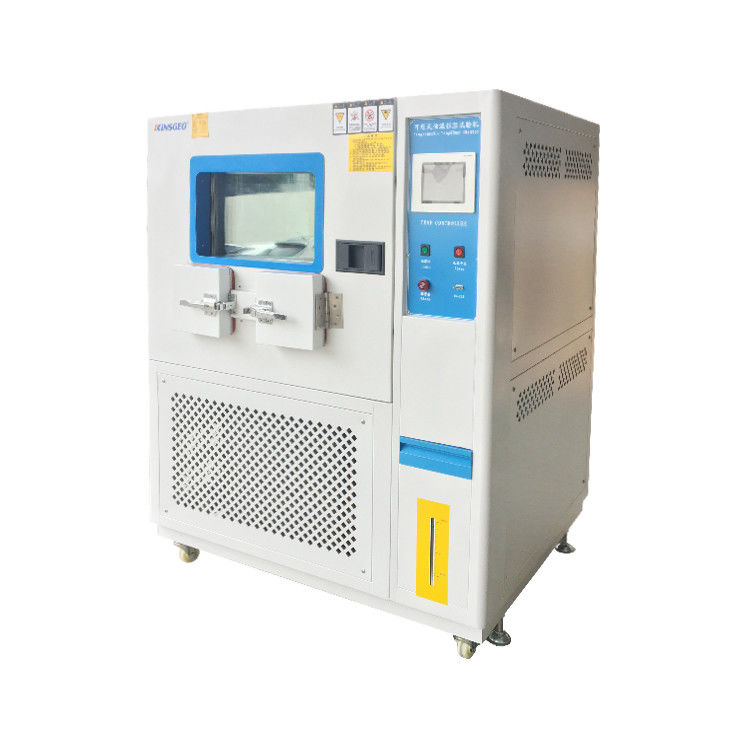

408L Temperature And Humidity Control System,
150L Temperature And Humidity Control System,
Lab Constant Temperature And Humidity Chamber
Humidity can be one of the most misunderstood topics when it comes to environmental testing chambers. This is because relative humidity percentage is temperature specific. For example, the moisture content in the air at 20˚C (68°F) and 50% RH is not the same as the moisture content in the air at 10˚C (50°F) and 50% RH. As the air cools, so does its ability to hold moisture. Therefore, for a given amount of water vapor in the air, the lower the temperature, the higher the relative humidity. Standard controllable temperature/humidity range for most manufacturers is 5˚C (41°F) to 85˚C (185°F), 10% to 98% relative humidity, limited by 7˚C (44˚F) dew point . The 7°C (44°F) dew point limit can be very confusing. Because humidity levels vary at each temperature, chamber manufacturers use dew point to describe the RH limit.
1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
1. Design Standard
|GB11158||High Temperature Test Chamber Technical Condition|
|GB10589-89||Low Temperature Test Chamber Technical Condition|
|GB10592-89||High-low Temperature Test Chamber Technical Condition|
|GB/T10586-89||Damp Heat Test Chamber Technical Condition|
|GB/T2423.1-2001||Low Temperature Test Chamber Test Methods|
|GB/T2423.2-2001||High Temperature Test Chamber Test Methods|
|GB/T2423.3-93||Damp Heat Test Chamber Test Methods|
|GB/T2423.4-93||Alternating Damp-Heat Test Methods|
|GB/T2423.22-2001||Temperature Changing Test Methods|
|IEC60068-2-1.1990||Low Temperature Test Chamber Test Methods|
|IEC60068-2-2.1974||High Temperature Test Chamber Test Methods|
|GJB150.3||High Temperature Test Methods|
|GJB150.4||Low Temperature Test Methods|
|GJB150.9||Damp Heat Test Methods|
|Internal size cm||40×50×40||50×50×60||70×70×85||100×80×100|
|External size cm||93×81×131||103×91×141||123×121×166||153×131×181|
|Tempetature range, accurancy||-10,-20,-40,-60,-70～+150degree; ±0.1～± 0.3|
|Humidity range, accurancy||20％RH~98％RH； ±0.5％RH～±2.5％RH|
|Temp&humidity control||Korea TEMI880|
|Circulatory System||the circulatory system of wind speed|
|Heating System||SUS#304, stainless steel heater|
|Humidifying System||Surface evaporation, a transparent structure.|
|Cooling system||Fan cooling mode, high efficiency of all sealed compressor|
|Water Supplying System||Automatic control and transparent structure, automatic recovery of filtered water reuse.|
|Dehumidifying System||Freezing latent heat dehumidification mode.|
|Standard Allocations||shelves 2 groups, interior lights, anti-sweat&defogging device.|
|Safety Devices||Leakage current, overload, compressor overload, over temperature, ultra-wet, dry, humidification temperature protection.|
3. Company Information
Our factory Established in 2003, Dongguan Kejian Instrument Co., Ltd is a high-tech enterprise
which professionally research, develop and produce precise testing instruments and provide a full set of testing solution.
4. Attend the fair
We attend international exhibitions three to five times every year, and domestic exhibitions five to ten times every year, We hope to have the opportunity to invite you to visit our booth in future.
5. Certifications and letters patent
7. Our services
1). Warranty time: All machines are guaranteed for one year free that we provide spare components except the wrong operation or damaged by people on purpose.
2). Teaching services: Our engineers will teach your staff to operate the machine during the period of installation and commissioning, and they will not leave until your staff can operate it properly and normally when it necessary.
3). Certificate services: Complying with our clients' request, we can provide related certificates to clients freely
4).Maintenance services: If you have any questions or any malfunction happened,we will reply you within 48 hours .
