220V Tape Adhesion Tester , TLMI 180 Degree Peel Adhesion Test

Name: 220V Tape Adhesion Tester , TLMI 180 Degree Peel Adhesion Test
Brand: KEJIAN
SKU: KJ-6089
Rating: 4.7 (127 reviews)

Large Image : 220V Tape Adhesion Tester , TLMI 180 Degree Peel Adhesion Test

Product Details:

Place of Origin:	Dongguan,China
Brand Name:	KEJIAN
Certification:	ISO,CE and etc.
Model Number:	KJ-6089

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiate
Packaging Details:	Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time:	In stock,3-7 working days after we confirmed order
Payment Terms:	T/T, Western Union, MoneyGram, L/C, T/T
Supply Ability:	5000 Sets/Year

Contact Now

Detailed Product Description

Product Name:	Peel Strength Testing Machine	Size:	6112033cm
Angle:	Adjustable	Weight:	42KG
Temperature:	0~70°C	Speed:	100mm/min~15m/min
High Light:	TLMI tape adhesion tester , 180 degree tape adhesion tester , 220V 180 degree peel adhesion test

220V 180 Degree Tape Peel Adhesion Test Equipment Machine Tester

Usage

Peeling Strength Testing Machine is suitable for PSTC, ASTM, TLMI, FINAT and AFERA specifications, as well as 90°, 180° can be used, the most convenient universal tension machine.

This equipment is the release force test, peeling force test is improved. It combines the wishes of people all over the world who have a common need for adhesion and release force.

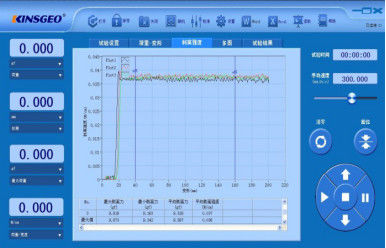

It can be combined with relevant data collection and processing system and Kinsgeo operating software to master the work of data collection and analysis as a whole.

Equipment advantages:

- Can adapt to a variety of domestic and foreign standards for stripping test.
- The test speed is adjustable from 100mm/min to 15m/min.

- It can be peeled from a variety of angles between 90° and 180°.

- The first machine in China, specializing in photoelectric material industry design.

- The sampling frequency of the point can reach 1000 times/second, which is higher than the sampling frequency of the imported machine, and you can choose according to your own needs! Can make the power curve more realistic.
- The use of high-speed chain structure, no impact of acceleration, the traditional screw drive, acceleration process, the test has been completed, so the data is not accurate.

Test:

The free end of the sample is folded in half 180 degrees, and peeled off from the test board, the adhesive surface is 25mm. The free end of the sample and the test plate are separately clamped on the upper and lower grippers. The peel surface should be consistent with the force line of the testing machine. The testing machine is continuously peeled at a peeling speed of 10M/min, and the peeling curve is drawn by an automatic recorder

Product Description

Voltage	AC 220V/ 50Hz
Size (HWD) cm	A: 619133 CM, B: 6112033 CM
Weight (KG)	42KG
Load Cell	2KG, 5KG, 10KG, 20KG
Adhesion Force	10KG or 5KG
Release Force	2KG or 5KG
Speed	100mm/min - 15m/min
Angle	90° - 180°
Temperature	0° C - 70°C

KeJian Instrument Service:

Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service

Contact Us:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Absorbed manufacturer for mechanical properties measuring equipment. Specialized clamps to exactly fit your test request!

Tag:

Contact Person: Miss. Silivia Zhang

Tel: 86-13925519875

Fax: 86-0769-28638013
