| Product Name: | Programmable Temperature & Humidity Test Chamber | Control Range Of Temperature: | -70℃～150℃ （Customizable） |
|---|---|---|---|
| Control Range Of Humidity: | RH20%～98% | Controller: | Programmable LCD Touch Screen |
| Temperature Fluctuation: | ±0.5℃ | Inside Material: | Stainless Steel SUS 304 # |
| High Light: | GB10589-89 Temperature Humidity Test Chamber,225L Temperature Humidity Test Chamber,225L controlled temperature chamber |
||

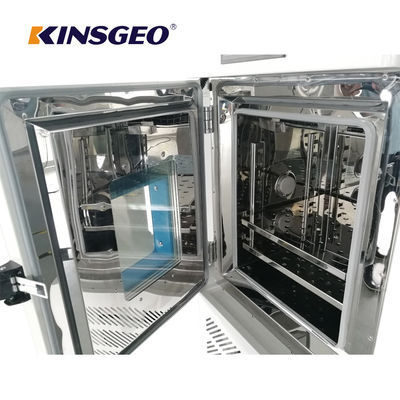

Stainless Steel Temperature Humidity Test Chamber/ High Low Temperature Control Cabinet
Standard
GB11158, GB10589-89, GB10592-89, GB/T10586-89, GB/T2423.1-2001,
GB/T2423.2-2001, GB/T2423.3-93, GB/T2423.4-93, GB/T2423.22-2001,
IEC60068-2-1.199, IEC60068-2-2.197, GJB150.3, GJB150.4, GJB150.9.
Non-standard customized type Conventional narrow type Standard type
Technical Parameter
| Model | A | B | C | D | E | F | |
| Size of inner box (W×H×D) |
40×50×40 cm |
50×60×50 cm |
40×75×60 cm |
60×85×80 cm |
100×100×80 cm |
100×100×100 cm |
|
| Size of outer box (W×H×D) |
92×138× 108cm |
102×146×116 cm |
102×162× 126cm |
113×172×148 cm |
150×186×139 cm |
158×188×168 cm |
|
| Volume of inner box | 80L | 150L | 225L | 408L | 800L | 1,000L | |
| Control range of temperature and humidity | A:-20℃～150℃ B:-40℃-～150℃ C:-60℃～150℃ D:-70℃～150℃ RH20%～98% | ||||||
| Performance | Fluctuation of temperature and humidity | ±0.5℃；±2.5%RH | |||||
| Deviation of temperature and humidity | ±0.5℃～±2℃；±3%RH(＜75%RH)；±5%RH(≥75%RH) | ||||||
| Accuracy of control analysis | ±0.3℃；±2.5%RH | ||||||
| Controller brand | Customized | ||||||
| Material | Interior | #SUS 304 Steel plate | |||||
| Exterior | White&Blue | ||||||
| Thermal insulation material | High temperature and high density vinyl chloride for mate foam insulation material | ||||||
| System wind path circulation | Centrifugal fan - wide band forced air circulation (upper in, lower out) |
||||||
| Refrigerating method | Single stage mechanical compression refrigeration | ||||||
| Refrigerating machine | Fully enclosed piston type compressor From TAIKANG French | ||||||
| Refrigerant | R4O4A/Dupont environmental refrigerant(R23+R4O4) | ||||||
| Condensation method | Air or water cooled | ||||||
| Heater | Nickel-chromium electric heating wire heater | ||||||
| Humidifier | Semi-enclosed steam humidification | ||||||
| Water supply method | Fully automatic circulating water supply (manual Watering) | ||||||
| Standard equipment | View window (double-layer hollow tempered glass)×1, 50mm test hole position and left×1, PL box light×1, partition×2, dry and wet ball gauze×1 fuse×3 rubber soft plug ×1, power cord×1 | ||||||
| Safety device | No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse fault warning system | ||||||
| Power | 1φ, 220V AC±10% 50Hz 3φ, 380V AC±10% 50Hz | ||||||
