Product Details:
Payment & Shipping Terms:
|
Accuracy: | ±1.0% | Color: | White |
---|---|---|---|
Warranty: | 12 Months | Standards: | ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7 |
Capacity: | 1、2、5、10、20、50、100、200kg Optional | Stroke: | 650mm |
Range Of Speed: | 0.5~500mm/min | Test Space: | 120mm MAX |
Power: | 1PH, AC220V, 50/60Hz | Resolution: | 1/50,000 |
Weight: | 60KG | ||
Highlight: | leather softness tester,material testing equipment |

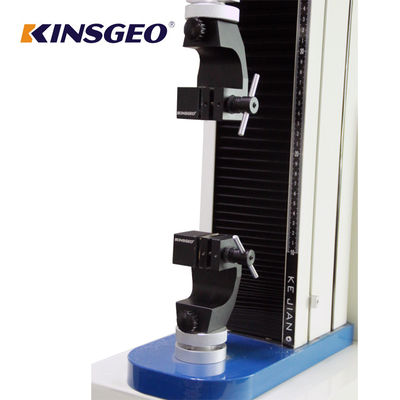

1PH, AC220V, 50/60Hz Leather Tensile Testing Instrument With 1 Year Warranty
Meet The Standard:
1. GB/T4689.20-1996 measuring fastness of leather’s adhesion
2. QB/T2710-2005 measuring leather’s expansion and the rate of elongation
6. Breaking strength (sample method) GB/TT3923.1 ,ISO13934.1 , ASTM D5035
7. (Grab method) GB/T3923.2 ISO13934.2 ASTM D5034
8. Tear strength (tongue-shaped tear) GB/T3917.2 ISO13937.2 ASTM D226110. Seam Slippage GB/T13772.1/2/3 ISO13936.1/2 ASTM D434
11. Peel strength FZ/T01085 ASTM D2724/3936 AATCC 136 FZ/T80007.1 FZ/T01010 FZ/T60011
12. Ball Bursting GB/T19976 FZ/T01030 ISO3303 ASTM D3787/6796
13. Elastic Recovery FZ/T70005 FZ/T70006 BS 4952
14. Single Yarn Strength GB/T3916/14344 ISO2062 ASTM D 2256
15. Other standards GB4689.6 GB/T13763 GB/T13773 GB/T14800
16. GB/T15788 GB/T16989 FZ/T01031 FZ/T2001917. FZ/T60005 FZ/T60006 FZ/T70007 ISO 13935.1/2
18. ASTM D1683 ASTM D4964 ASTM D5733/5735 BS 3320
Technical parameter:
Model | Plastic Film Universal Tensile Test Instrument |
Max load | 500N, 1KN, 2KN (optional) |
Accurate grade | 1 grade /0.5 grade |
Effective measuring range | Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade) |
Measuring accuracy | Tolerance ±1% / tolerance ±0.5% |
Tester resolution | Max load 1/200000, and constant resolution |
Load sensor | Basic configurationsensormax load:from four sensors to choose one |
Effective tensile stroke | 800mm (can be widened according to customers requirement ) |
Effective testing width | 300mm |
Testing speed | From 0.001 to 500mm/min |
Accruacy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
safety | Electronic-limit protection |
Testing platform moving device | Fast /slow ( two speeds to control), can jog |
Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
Overload protection | Overload 10%,automatic protection |
fixture | A set of tensile fixture |
Machine size | 650*360*2100mmm (L*W*H) |
Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
Temperature range | From normal temperature to 200 degree |
Temperature display | Digital display |
Inside space | 200*300*500mm (W*L*H ) |
Cooling system | Compression from France |
Power supply | 220V50HZ or according to the requirement |
Power | 0.4KW ( depending on different demand of force, using different motor) |
weight | 150 Kg |
Main features:
Plastic Film Universal Tensile Test Instrument is suitable for all kinds of textile, rubber, plastics, synthetic
leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials and
products industry to do tensile,compression, bending, shear, peel (90 degrees and 180 degrees),
tearing, two extensions (need to reprovision extensometer ) and other tests to determine product quality.
Meet the criteria:
"GB/T16491-1996 electronic universal testing machine"
Main features:
1. Good design. My company has been great emphasis on product appearance and development of many
models with comparable foreign products are aluminum alloy surface, and electrostatic spray chart.
2. Force value digital LCD display, a discernible tension or pressure, LCD interface, easy to read.
3. Three types of units: N-Kgf-Lbf optional and can automatically swap.
4.LCD liquid crystal display with backlight, can be used in low-light environment.
5. Single determination, you can read the tension and compression peaks in both directions, and automatic
and manual reset;
6,With travel limit and the overload stop function.
7. Desktop single-column structure is beautiful and delicate, seating operation, easy and natural.
Applicable industry:
Plastic Film Universal Tensile Test Instrument widely used in wire and cable, hardware,
electronics, packaging,
printing, medical equipment, auto parts, textiles and leather, clothing footwear, rubber products, institutions
of higher learning; research laboratories; inspection of arbitration, and technical supervision departments
and other industries, is quality management, basic equipment character test.
