1ph Peel Adhesion Test Equipment 120mm Max Test Space Optional Capacity Ac220v

small.img.alt small.img.alt

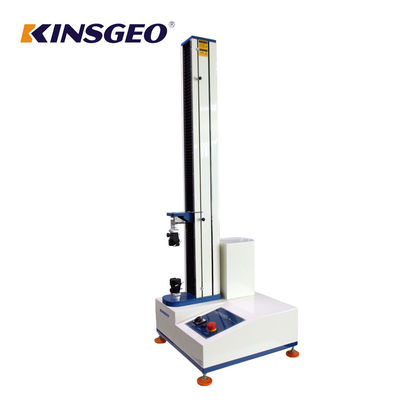

Large Image :  1ph Peel Adhesion Test Equipment 120mm Max Test Space Optional Capacity Ac220v

Product Details:
Place of Origin: China
Brand Name: KeJian
Certification: ISO,CE and etc.
Model Number: KJ-1065C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 200 sets per month
Detailed Product Description
Accuracy: ±1.0% Color: White
Warranty: 12 Months Standards: ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7
Capacity: 1、2、5、10、20、50、100、200kg Optional Stroke: 650mm
Range Of Speed: 0.5~500mm/min Test Space: 120mm MAX
Power: 1PH, AC220V, 50/60Hz Resolution: 1/50,000
Weight: 60KG
High Light:

leather testing equipment


leather softness tester

1PH, AC220V, 50/60Hz Peel Adhesion Test Equipment With 10,20,50,100,200kg Optional Capacity



KJ-1068 is used in the industry of siliceous material,solar energy panel,solar energy material,electric wire and electron.It can be used to test all kinds of physical properties of finished or semi-finished products.Choose different clamps,you can do the test of tensile,resist compression,bending, shear, peel, loop tack and fatigue force.Can do 180,90,45 angle peel test.



1.Using the computer as the main control machine and the special testing software of our campany,It can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

2.Have steady performace, high accuracy, powerful software function and easy operation.

3.Use the USA high-precision load cell.



1.Suitable Grips that meet customer sample need.

2.Software for test control,data acquisition and report.

3.English operation teach video.


BESTE Software functions

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3.Have simplified Chinese, traditional Chinese and English three languages,

switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;



Design Standards

ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7





Capacity 10,20,50,100,200,500kg optional
Test speed 50-500mm/min
Stroke 650mm(excluding clamp)
Effective testing space 120mmMAX
Accuracy ±0.5%
Operation method Windows operation
Resolution 1/150,000
Dimention (W×D×H)58×58×125cm
Motor AC motor
Optional accessories stretcher, air clamp
Power 1PH, AC220V, 50/60Hz
Weight 70KG



Safety Device:

Stroke protection: Machinery, computer double protection, prevent over preset

Emergency stop device: Handling emergencies.


Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.


2.Excellent after sale service:

1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.


3.Good Packaging:

Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

1ph  Peel Adhesion Test Equipment 120mm Max Test Space  Optional Capacity Ac220v 0

1ph  Peel Adhesion Test Equipment 120mm Max Test Space  Optional Capacity Ac220v 1

1ph  Peel Adhesion Test Equipment 120mm Max Test Space  Optional Capacity Ac220v 2
