Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument

Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument

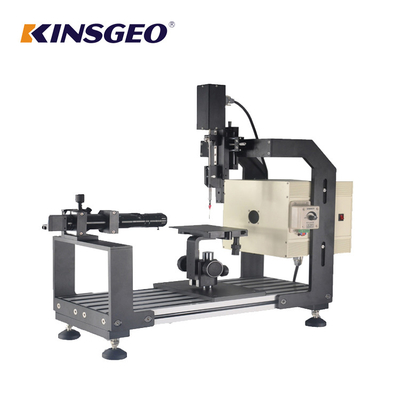

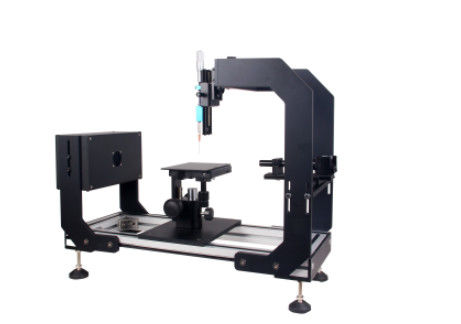

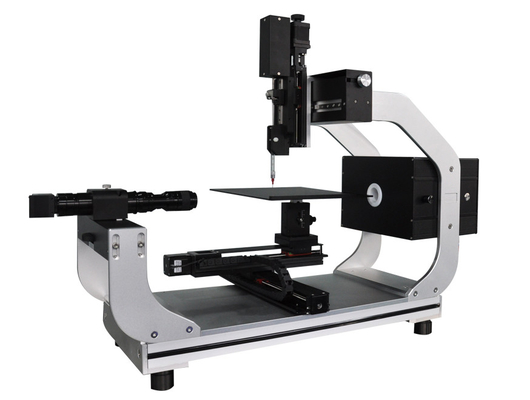

Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument

Large Image :  Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument

Product Details:
Place of Origin: China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: KJ-625A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: 25 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 200 sets per month
Detailed Product Description
Model: KJ-625A Host Appearance Size: 360 Mm (width) * 450 Mm * 450 Mm (long) (high)
Working Mesa Size:: 120 Mm * 150 Mm Largest Sample Size: 10 Inches
Sampler Mobile: 100 Mm;About 100 Mm Industrial Lens: 0.7 X To 0.7 X Hd Continuous Variable X Microscope
Lens Angle: Straight Forward Illuminant: Adjustable Single Wavelength Industrial-grade LED Light
Power: 1&,AC220V,5A Warranty: 12 Months
High Light:

battery tester machine

,

battery testing equipment

KJ-625A Contact angle goniometer/Contact angle meter/Contact angle measuring instrument

Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument 0

Preface



As is known to all, nanomaterials science and engineering have become the world's research hotspots. When studying the surface modification of nanomaterials, the concept of wetting contact Angle is often involved.Contact Angle refers to the level of a solid plane drops of a droplet and solid on the surface of the solid - liquid - gas three-phase junction, the gas-liquid interface and the solid-liquid interface two tangent to clamp the liquid phase in the Angle.



Instrument application field



1 TFT - LCD panel industry: glass panel and the coating quality of cleanliness measurement;TFT printing circuit, color filter, ITO conductor film and other pre-coating quality measurement

2 printing, plastic industry, surface cleaning and the adhesion quality measurement;Measurement of ink adhesion;Compatibility measurement of glue colloidal properties;The fastness of the dye

3 semiconductor industry: a wafer cleanliness measurement;Control of HMDS;Research of CMP research and measurement, photoresist and imaging agents

4 chemical materials research: waterproof and hydrophilic materials research;The surface activity and detergent's tension and humidity;Adhesion enhancement and adhesion surface can be measured

5 IC encapsulation: substrate surface cleanliness;Identification of atomic synthesis;BGA welding surface;The adhesion of epoxide is measured



Instrument parameters



1 contact Angle measuring range: 0-1800

2 contact Angle measuring accuracy:±0.10

3 high precision drip system: differential head + blue core syringe;Drip accuracy 0.5 mu l

4 contact Angle with high precision instrument calibration tablets: Germany imported from contact Angle calibration standard 3 ° 5 ° 8 ° to 60 °, 90 °, 120 °, 115 ° (optional)

5 irregular surface contact Angle detection: can measure for irregular surface, (such as concave and convex, surface, etc.)

6 table interfacial tension measurement range: 0-1000 mN/m;Measurement accuracy: 0.01 mN/m



Instruments Attachment



        Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument 1                     Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument 2

                                 (Fixture)                                                                                    (Angle calibrate)



                                   Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument 3                                                                       Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument 4

                                       (hydrophobic)                                                           (constant displacment pump)











                          Contact Angle Goniometer/Contact Angle Meter/Contact Angle Measuring Instrument 5

                                  (Static Wind Snake)
