| Aplication: | Salt Spray Machine | Warranty: | 12 Months |
|---|---|---|---|
| Usage Strength: | Test Chamber | Voltage: | 220V±10% |
| Temperature Range: | +10℃～＋55℃ | Heating Rate: | Rise To 40℃±2℃ Within 30 Minutes |
| Power: | 3KW | Humidity Range: | 85%-95% RH |

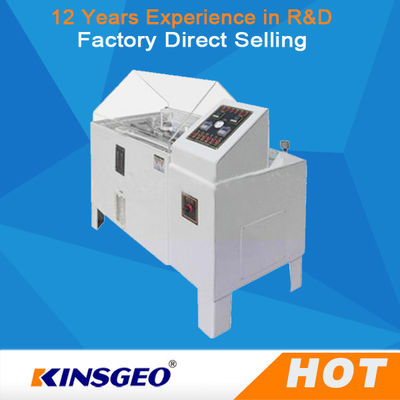

ASTM B368/D1654/E691/G85 108L Acetic Acid Salt Spray Test Chamber With High Temperature
Uses:
Salt Spray Test Chamber is suitable for large-scale glass and other electric and electronic products, parts and materials dioxide salt spray test or constant testing, simulated marine environment under varying conditions and the nature of products, parts and materials for quality and reliability testing.
Standards:
ASTM G85 A4,GB 9789-88,GB/T2423.19-18 ,GB/T10125-97,IEC60068-2-42/43,GB/T5170.8,GB10587-89.
Specifications:
| Internal Effective Size | 900*600*500mm (L×W×H) |
| Dimension | Approx 1400*750*1250mm (L×W×H) |
| Temperature Range | room temperature +10℃～＋55℃ ( adjusted ) |
| Temperature Uniformity(unload) | ≤1.0℃ (unload) |
| Temperature Fluctuation | ≤±0.5℃ ( constant ) |
| Humidity Range | 85%-95% RH; ( unadjusted ) |
| Heating Rate | rise to 40℃±2℃ within 30 minutes |
| Average Relative Velocity of the gas to test sample | 20-60m/h |
| The concentration of Sulfur Dioxide Gas is adjustable | between 0.05%-1% ( volume ratio) |
| Corrosion Settlement | ≤1.5 (ml/80cm2..h) |
| Collected Liquid PH in the Neutral Salt Spray Test (NSS) | (6.5-7.2) |
| Collected Liquid PH in the Acetic Acid Salt Spray Test (AASS) | (3.0-3.3) |
| Collected Liquid PH in the Copper Accelerated Acetic Acid Salt Spray Test(CASS) | (3.0-3.3) |
| Inclination of sample stent and vertical direction | 15° ±2° |
| Quantity of Sprayers | 1 ( to ensure even distribution of salt spray ) |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

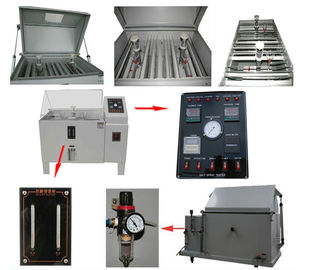

Pictures:
