304# Stainless Steel UV Test Chamber with RT+20℃~70℃ Temperature Range and ±1℃ Uniformity for Accelerated Weathering Testing

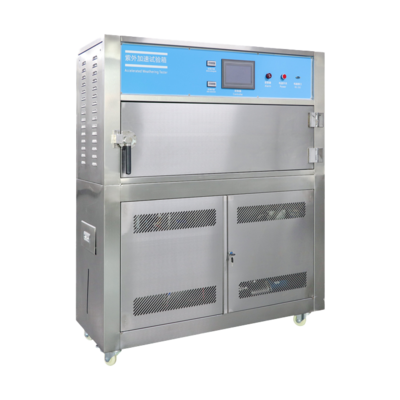

Large Image : 304# Stainless Steel UV Test Chamber with RT+20℃~70℃ Temperature Range and ±1℃ Uniformity for Accelerated Weathering Testing

Product Details:

Place of Origin:	China
Brand Name:	Kejian
Certification:	ISO, CE and etc.
Model Number:	KJ-9029

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate
Packaging Details:	Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time:	Standard size in stock,3-7 working days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability:	30 Sets per Month

Contact Now

Detailed Product Description

Materials:	304# Stainless Steel	Temperature Range:	RT+20℃~70℃
Temperature Uniformity:	±1℃	Temperature Fluctuation:	±0.5℃
Temperature Control:	PID SSR Control	Humidity Range:	≥90%RH
Lifetime Of Lamp:	1600Hours	Effective Irradiation Area:	900×210mm
Standard Specimen Size:	75×290mm/24 Pieces	Power:	1 Phase, 220V/50Hz /±10% 5KW
Highlight:	304# Stainless Steel UV Test Chamber , RT+20℃~70℃ UV Accelerated Weathering Tester , ±1℃ Uniformity UV Aging Chamber

Leather UV Aging Acceleration Simulation Test Chamber

UV Testing Equipment for effective irradiation area UV accelerate testing machine and environmental control chamber.

Corresponding Standards

ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020

Product Applications

UV accelerated weathering test chamber simulates damaging effects of long-term outdoor exposure to sunlight, heat, and moisture on materials and coatings. It exposes specimens to varying conditions of weathering - ultraviolet radiation, moisture, and heat - to test performance and improve quality.

UV Test Profile

Technical Parameters

Parameter	Specification
Model	KJ-9029
Test chamber size (L×W×H)	1170×450×500(mm)
Outside dimension (L×W×H)	1350×540×1480(mm)
Chamber materials	304# stainless steel
Temperature range	RT+20℃~70℃
Temperature uniformity	±1℃
Temperature fluctuation	±0.5℃
Temperature control	PID SSR control
Humidity range	≥90%RH
Controller	TEMI 880 programmable controller, touch screen, LCD display
Control mode	Balance temperature humidity control (BTHC)
Communication function	Computer control via TEMI control software through RS-232 port
Test cycle setting	Programmable illumination, condensation and water spray test cycles
Distance from specimen to lamp	50±3mm (adjustable)
Center distance between the lamps	70mm
Lamp power & length	40W/Piece, 1200mm/Piece
Lamps amount	8 pieces of UVA-340 or UVB-313 imported lamps
Lifetime of lamp	1600Hours
Irradiance	1.0W/m², adjustable directly on TEMI 880 touch screen controller
Wavelength of ultraviolet light	UVA is 315-400nm and UVB 280-315nm
Effective irradiation area	900mm×210mm
Irradiation black panel temperature	50℃~70℃
Standard specimen size	75×290mm/24 pieces
Water depth for water channel	25mm, automatically control
Water consumption	8L/day, tap water or distilled water
Testing time	0～999H, adjustable
Power	1 phase, 220V/50Hz /±10% 5KW
Protection	Overload short circuit protection, over temperature protection, water lacking protection

Standard Accessories

One copy of English user guide
One CD of controller software and operation instruction video

Important Notes

1. Please specify whether 8 UVA or 8 UVB lamps are needed when ordering.

2. UVA-340 lamps simulate natural outdoor exposure well. UVB-313 lamps perform accelerated testing more quickly via stronger irradiation.

Control Systems

Safety Protection

Ground fault protection
Power overload, short circuit breaker
Control circuit overload, short circuit fuse
Water lacking protection
Over-temperature protection

Usage Requirements

Environmental temperature: 5℃~+32℃
Environmental humidity: ≤85%
Power requirement: AC220(±10%)V/50HZ
Capacity: 5KW
Fine grounding

Warranty & Service Assurance

Warranty Coverage

The warranty period for the machine is one year under normal use since the delivery date.

After-sales Service

Free lifetime technical support
Report problems to jessica@kejian-tech.com for solutions from our engineers

Warranty Exclusions

Damage from abnormal operation, man-made or natural disasters
Improper operation
Improper power supply
Unauthorized modifications
Consumable materials like UV lamps

How to Buy

50% down payment required to begin production
Balance 50% payment required after production completion
Shipping arranged after final payment (approx. 5 days for customs clearance)

Bank Information

Beneficiary Name: KEJIAN INDUSTRIAL(HONG KONG) CO.,LTD

Beneficiary Bank: HONGKONG AND SHANGHAI BANKING CORPORATION LIMITED,THE

Bank Address:1 Queen's Road Central,Hong Kong

SWIFT:HSBCHKHHHKH

Beneficiary's A/C: 801217209838

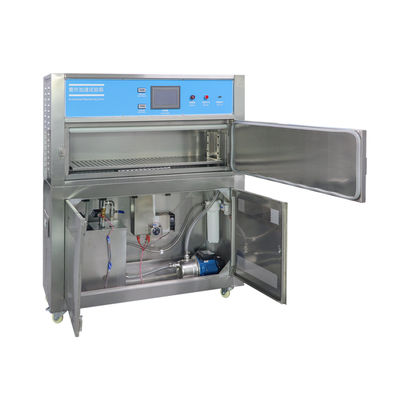

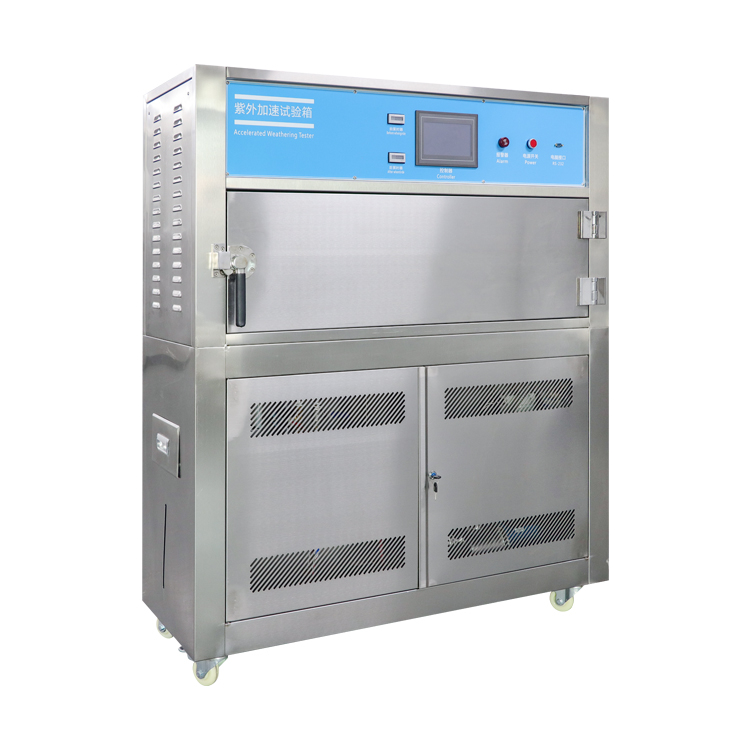

Product Images

Frequently Asked Questions

Q: What is your warranty?

A: 12 months product warranty with lifetime services. Free non-consumable components provided for performance failures within 12 months caused by non-human damage.

Q: How-to video provided?

A: Yes, our engineers can record specialized instructional videos upon request.

Q: Are you a trading company or factory?

A: We are a manufacturer with 18 years in test instruments and 9 years exporting experience. We support OEM/ODM and welcome factory visits.

Q: Delivery time after order?

A: Typically 25 days, or 3 days if items are in stock. Lead times vary by product and quantity.

Q: Warranty and after-sales services?

A: 12 months warranty with free controller repairs (even non-original). After warranty, our team provides ongoing technical support.

Q: Product quality and services?

A: All instruments undergo 100% quality testing. We provide video training for installation/operation and can send engineers abroad for training/repairs.
