Product Details:
Payment & Shipping Terms:
|
Aplication: | Salt Spray Machine | Warranty: | 12 Months |
---|---|---|---|
Usage Strength: | Test Chamber | Power: | 1φ、220V/50HZ |
Spray Capacity: | 1~10cc/h | Structure Material: | F.R.P |
Standard: | ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371 | Internal Size: | 90×60×50cm |
High Light: | salt spray test machine,salt fog test chamber |

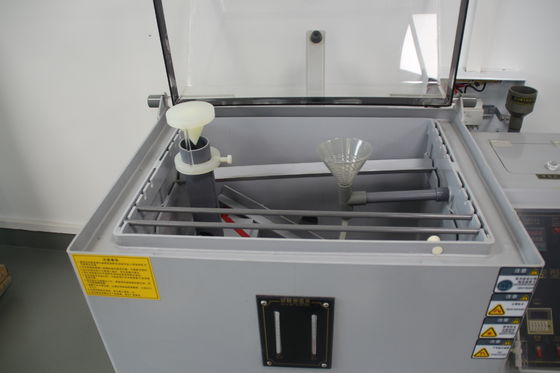

ASTM B368/D1654/E691/G85 Salt Spray Corrosion Tester Salt Spray Test Chamber For Electrochemical Corrosion Testing
1.Uses
It has a standardized test method to check corrosion resistance of coated samples. Salt spray test is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.
Characters
1. the spray nozzle the heart of tester adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.
2. the controller is digital type microcomputer which delivers precision temperature
3. parameters show on the display screen such as temperature, humidity, pressure, spray capacity and time.
4. test specifications are accept world wild.
Specifications
Design standard | ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371 |
Internal size |
90×60×50cm |
Temperature | lab: NSS.ACSS35℃±1℃ / CASS 50℃±1℃ |
Saturated air cylinder | NSS.ACSS35℃±1℃ / CASS 50℃±1℃ |
Spray capacity | 1~10cc/h |
Structure material | F.R.P |
Accessories | test salt, barrel, tool |
Power | 1φ,220V/50HZ |
KEJIAN Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation
2.Equipment Operation Test Technology training
3. Equipment Calibration
4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service.
FAQ:
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city--the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
