Product Details:
Payment & Shipping Terms:
|
| Usage Strength: | Measuring Machine | Warranty: | 12 Months |
|---|---|---|---|
| Aplication: | Optical Instruments | Weight: | 350kg |
| Working Voltage: | 220V | Table Range Size: | 600 * 400mm |
| Linear Accuracy: | (3+L/200)um | Dimensions: | 960 * 820 * 940mm |
| High Light: | coordinate measuring instrument,surface roughness measurement equipment |
||

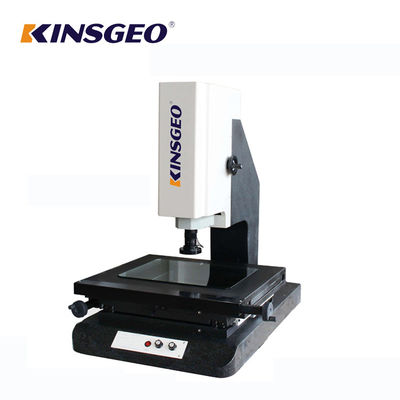

220V 960 * 820 * 940mm Probe Type Automatic Dimension Measuring Machine 12 Months Warranty
Description:
1. KJ-D002 with 00 level high stability granite base.
2. Apply with optical reading measurement system of Swiss TESA patent.
3. Multifunctional image, the probe interlock measurement software.
4. Taiwan high wear V-rail.
Technical parameter:
| Model | KJ-D002 |
| Measuring method | 400(X)X300(Y)X300(Z)mm |
| Linear accuracy | (3+L/200)um |
| Repeatability accuracy | 3um |
| Minimum displayed | 0.001mm |
| System Minimum Resolution | 0.0001 |
Measuring method:
1. mage type + probe type
2. Import of high-resolution color camera
| Made in Taiwan 0.7-4.5Zoom zoom magnification changes | 20X-220X |
| Switzerland TESA probe | ¢ 2, ¢ 3mm |
| Working distance range | 115mm (Image) |
| World famous brand PC | DELL / PC machine / 17 "flat screen computer |
| Measurement software | YR-3T |
| Operating temperature | 20 ± 1 °C |
| Operating temperature | 13-35 °C |
| EMC compliance test | OK |
| Machine Weight | 350Kg |
| Dimensions | 960 * 820 * 940mm |
| Table range size | 600 * 400mm |
| Working voltage | 220V |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Pictures:
