Product Details:
Payment & Shipping Terms:
|
Capacity: | 1000,2000,5000kg | Aplication: | Carton Compression |
---|---|---|---|
Warranty: | 12 Months | Resolution: | 1/250,000 |
Weight: | 550kg | Power: | 1φ、220V/50Hz |
Dimension: | 170×100×185cm | Test Speed: | 0.5~1000mm/min, Keyboard Inputing |
High Light: | Box Compression Strength Tester,Carton Compression Tester |

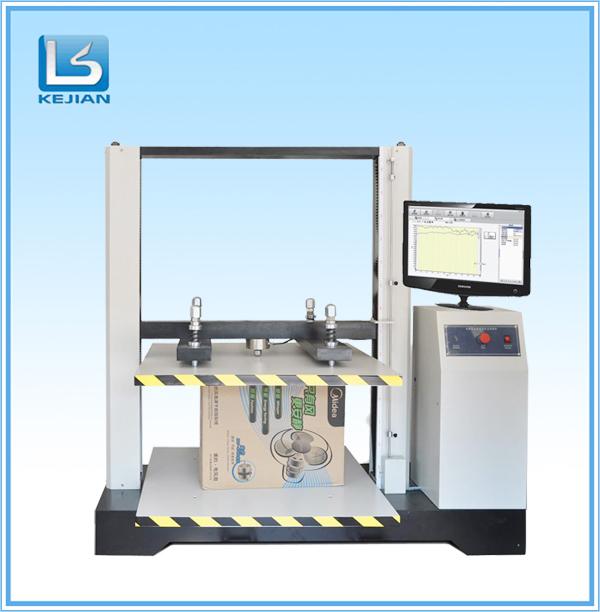

220V/50Hz 550KG Paper Box Compression Testing Machine with LCD Display
Uses:
Box compression testing machine is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
Character:
1. Adopting windows platform, all the parameter settings can be processed in the dialog box, and it operates easily.
2. Using a single-screen operation, do not need to switch the screen.
3. With three languges in simplified Chinese, traditional Chinese and English, the software interface can be switched easily.
4. Choosing translational, overlapping mode at the same time to make sure a number of curve date comparison.
5. With a variety of measurement units, measure in imperial&metric are switchable.
6. With automatic magnification function, in order to achieve the most appropriate size of the graphics.
7. With an advanced design of machine structure which have strong rigidness and small volume but light weight.
8. It can do test of compression strength, stack strength and peak value.
Specifications:
Capacity | 1000,2000,5000kg |
Resolution | 1/250,000 |
Unit | kg,lb,n,g switchable |
Test space | 100×100×100cm(it customizes by customer) |
Drive System | servo system,precision ball screw, DC variable speed drive system |
Test speed | 0.5~1000mm/min, keyboard inputing |
Dimension | 170×100×185cm |
Weight | 550kg |
Power | 1φ,220V/50Hz |
Safety Device | Stroke protection,Force and Elongation protection,Emergency stop device,Sensing device when specimen is destroyed. |

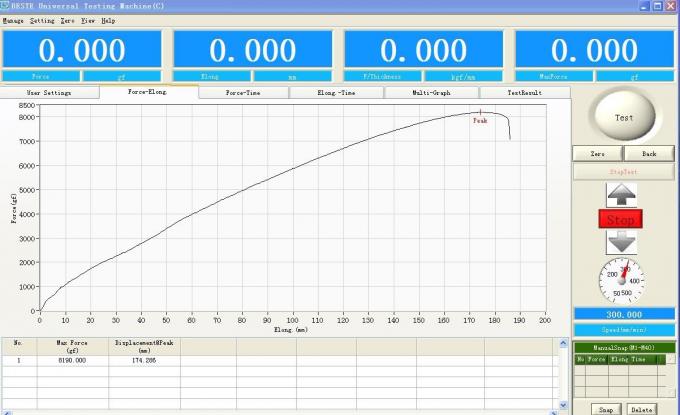

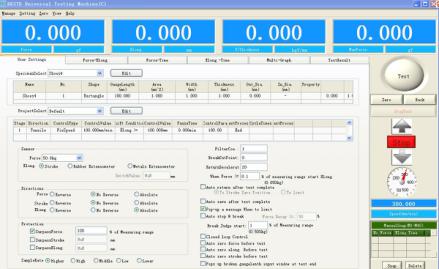

Software Functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7. With many units of measurement, the metric system and british system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function
10. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Pictures:
Contact Person: Sophia Cai
Tel: +8613929477992
