Product Details:
Payment & Shipping Terms:
|
Control Method: | Micro-computer Controller, LCD Display Screen | Aplication: | Paper |
---|---|---|---|
Warranty: | 12 Months | Power: | 1φ,220V/50Hz |
Weight: | 20kg | Specimen Dimension: | 100×200mm |
Rubing Stroke: | 60mm | Rubing Space: | 50×200mm |
High Light: | Packaging Testing Instruments,Paper Testing Instruments |

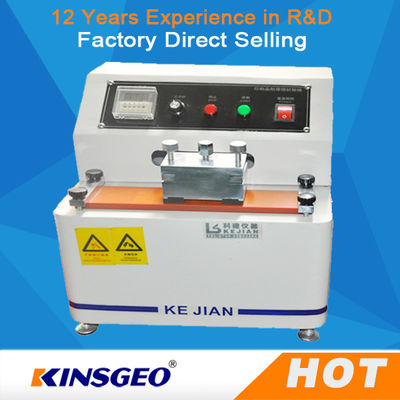

1φ,220V/50Hz 20N Durability Printing Paper Testing Machine Abrasion Ink Rub Tester
Uses:
Package Testing Equipment is applicable to test abrasive resistance and decoloration for printing ink, printing material and products. Through rubbing between specimen and white wood-free paper determines abrasive resistance and decoloration degree. Friction block moves to and fro by horizontal line.
Specifications:
Control method | micro-computer controller, LCD display screen |
Specimen dimension | 100×200mm |
rubbing speed | 4 choices (21/42/85/106c.p.m) |
Rubbing load | 4 lb(1.8kg) |
Rubbing stroke | 60mm |
Frequency set | 0-9999 automatical stop |
Test space | 50×200mm |
Machine dimension | 300×325×300mm W×D×H |
Weight |
20kg |
Power | AC 220V 50 60HZ 2A |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3.Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Pictures:
