Product Details:
Payment & Shipping Terms:
|
| Test Speed: | 5-50c.p.m, Adjustable | Vibration Way: | Spring Type,1.79kg/mm |
|---|---|---|---|
| Material: | Cold Rolled Sheet+powder Coated | Usage: | Trunk Vibration Impact, Luggage Oscillating Impact Test Machine |
| Test Time: | 1-999999, Automatic Stop Working | Application: | Luggage, Trunk, Leather Case' Vibration |
| Power: | 1φ、220V/50Hz | Weight: | 390kg |
| High Light: | Fabric Testing Equipment,Wear Testing Machine |
||

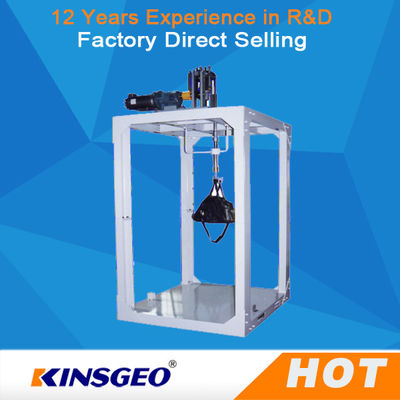

390kg Touch Screen Luggage Vibration Testing Equipment With PLC Control
Uses:
This machine is used to oscillate and impact the carrying handle, buckle, suture and structure of the suitcase, luggage and bags. The method is that loaded a certain weight in the suitcase, luggage or bags, with the speed of 30 times per minute and the stroke of 4-inch to impact the specimen 2500 times. The test results can be used for quality improvement.
Specifications:
| Impact height | 4-inch(0～6inch) adjustable |
| Oscillation mode | spring 1.79kg/mm |
| Test speed | 5～50C.P.M adjustable |
| Setting times | 1～999999 |
| Additional function | autostop when the specimen drops at half-way |
| Dimension | 140×120×250 cm (W×D×H) |
| Weight | 390kg |
| Power | 1φ,220V/50Hz |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Pictures:
