Product Details:
Payment & Shipping Terms:
|
| Aplication: | Textile | Warranty: | 12 Months |
|---|---|---|---|
| Usage Strength: | Testing Machine | Standards: | GB/T5455-97 |
| Others: | Can Be Customized | Power: | Ac220V，50Hz |
| Operation: | Manual+Automatic | Data Output: | Printer |
| High Light: | Textile Testing Machine,Fabric Inspection Machine |
||

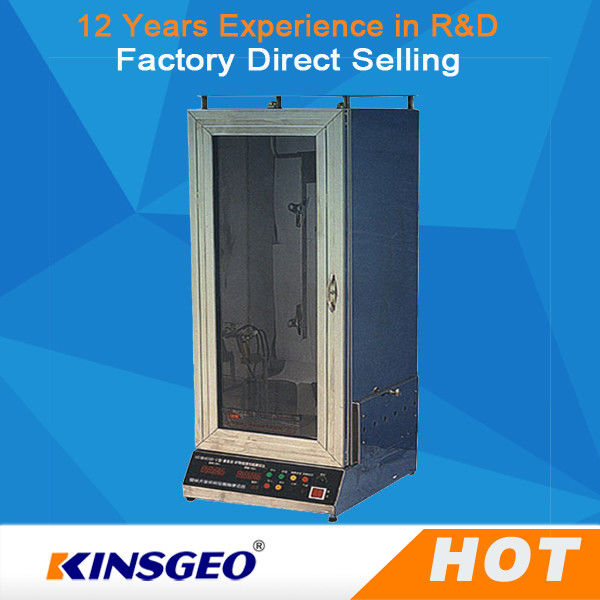

Automatic Electric Fabric Testing Equipment Veritical With Power Ac220V,50Hz
Description:
Textile Testing Equipment is suitable for vertical combustion test for clothing fabric, decorative fabric, tent fabric with requiments of flame retardant.
Standard:
GB/T5455-97<Vertical method for fabrics flame retardant textile>
Specifications:
|
Model |
KJ-C005 |
|
Renewal time range |
0-999.9S Resolution 0.1S |
|
Yin Yan-time range |
0-999.9S Resolution 0.1S |
|
Box room temperature display range |
0-99°C Resolution 1°C |
|
Ignition time |
12S(can be set) |
|
Igniter nozzle diameter |
11mm |
|
Sample distance from the ignition to the top |
17mm dip 25° |
|
Standard configuration
|
1 Sample clip |
|
4 Clips |
|
|
Hammer weight:54.5g,113.6g,226.8g,340.2g,453.6g per 1 |
|
|
Sample folder size
|
Shape 422mm×89mm |
|
Inner frame:356mm×51mm |
|
|
Studio Size |
329mm×329mm×767mm |
|
Dimensions |
500mm×331mm×900mm |
|
Mobile Electric Power ignition |
10W |
|
Power |
Ac220V,50Hz |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Pictures:
