Product Details:
Payment & Shipping Terms:
|
Aplication: | Textile | Warranty: | 12 Months |
---|---|---|---|
Usage Strength: | Testing Machine | Standards: | GB/T4802.2,ASTM D4970,ISO12945-2 Etc |
Others: | Can Be Customized | Power: | Ac220V,50Hz |
Operation: | Manual+Automatic | Data Output: | Printer |
Weight: | 150kg | ||
High Light: | Textile Testing Machine,Fabric Inspection Machine |

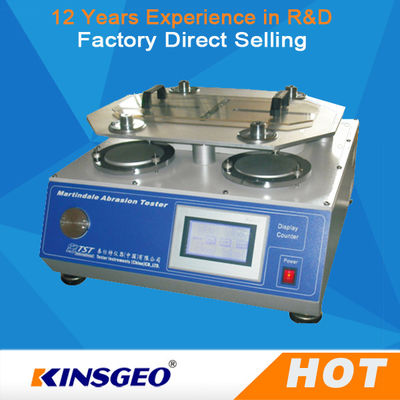

150kg Four Heads Textile Testing Machine , Pilling Martindale Abrasion Tester With Warranty 12 Months
Description:
The theory: at a given pressure ,circular fabric specimen and the same material, carrying out friction Lissajous trajectory graph, after achieved the required rotation, evaluate the pilling degree of the specimen. Also applies to GB/T13775, ASTM D4966, ISO12947 and other fabric wear test. The theory: circular fabric sample at a certain pressure, rubbing with the standard abrasive according to Lisa if (Lissajous) curve’strajectory, leading to specimen damaged, use the times of specimen damaged to represent fabric abrasion wear resistance.
Main feature:
The instrument learn the advantages of domestic and foreign similar equipment’s design, it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate,computer system uses two counting methods, visual appearance, convenient setting, 8 station testing at the same time to improve test efficiency. Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm, and a variety of trajectory matching accessories, can adapt to a variety of test methods standard.
Standard:
The pilling degree test of fabric of GB/T4802.2,ASTM D4970,ISO12945-2 etc.
The wear test of fabric of GB/T13775,ASTM D4966,ISO12947 etc.
Specifications:
Model |
KJ-C001 |
Station number |
4 station |
Count display
|
a. Estimated counting:0~999999 times |
b. Total counting:0~999999 times |
|
Maximum dynamic range |
24±0.5mm ,60.5±0.5mm |
Weight of pressure thing
|
a.Gripper:200±1g |
b. Cloth samples hammer:395±2g |
|
c. Furniture accessories sample hammer:594±2g |
|
d. Stainless steel butterfly piece:260±1g |
|
Effective friction diameter of grinding block
|
A type: 200g (1.96N) friction head ¢ 28.8-0.084mm |
B type: 155g (1.52N) friction head ¢ 90-0.10mm |
|
The relative velocity of Gripper and the grinding station |
50-2r/min |
Weight of pressure hammer |
2385±10g |
Dimensions |
885mm×600mm×410mm(L×W×H) |
Weight |
150kg |
Power |
Ac220V,50Hz |
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Pictures:
