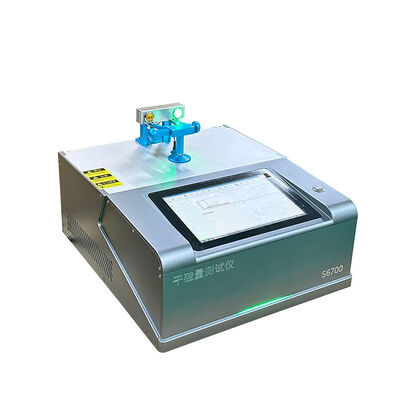

High Precision Silicone Coat Weight Tester XRF Silicone Coating Analyzer For Film & Release Liner

Large Image : High Precision Silicone Coat Weight Tester XRF Silicone Coating Analyzer For Film & Release Liner

Product Details:

Place of Origin:	China
Brand Name:	KEJIAN
Certification:	CE/ISO
Model Number:	S6700

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	9800
Packaging Details:	Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time:	15 work days
Payment Terms:	T/T, D/P, D/A, Western Union
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Detector:	AMPTEK Customized Fast-SDD Detector	High Voltage Power Supply:	50KV/1mA Digital High Voltage Power Supply
X-ray Tube:	20KV/1mA	Focus:	ϕ 1.0mm
Input Voltage:	AC100～240V，50Hz	Operating Environment - Temperature:	15℃～31℃

Product Overview:

The KJ-S6700 silicone oil coating volume analyzer is a core detection equipment for process control and cost optimization in the silicone oil coating industry. Relying on high-precision X-ray fluorescence detection technology, it enables rapid, accurate and stable detection of silicone oil coating volume for various substrates. The equipment has extremely strong compatibility and can be widely adapted to mainstream coated substrates such as PET films, Graflex paper, laminated paper, and kraft paper. It supports multi-point continuous testing and batch detection of various grades, balancing detection efficiency and data accuracy, helping enterprises achieve standardized control of coating processes, reduce raw material losses, improve product qualification rates, and meet the needs of large-scale production in multiple industries.

Parameter Name	Specific Specifications
Detector	AMPTEK customized Fast-SDD detector
Built-in Industrial Control Computer	NXP IMX8 quad-core A53 industrial control computer
High Voltage Power Supply	50KV/1mA digital high voltage power supply
X-ray Tube	20KV/1mA
Window Material	Beryllium window
Target Material	Silver/Rhodium
Focus	ϕ 1.0mm
Scintillator	ϕ8mm
Input Voltage	AC100～240V,50Hz
Product Packaging Dimensions	800mm x 535mm x 450mm
Product Dimensions	467mm x 345mm x 336mm
Sample Chamber Dimensions	306mm x 248mm x 124mm
Rated Power	<150W
X-ray Tube Lifespan	5000H
Gross Weight	50KG
Net Weight	32KG
Noise	50dB
Operating Environment - Temperature	15℃～31℃
Operating Environment - Humidity	<70% (No condensation)
Linux Kernel Version	4.14.98
XRF Software Version	V1.2.0
RTM Version	R10101570001-210218
System Firmware Version	V8.03(B02)
