Desktop Contact Angle Tester Water Drop Angle Measuring Machine For Film Glass Plastic

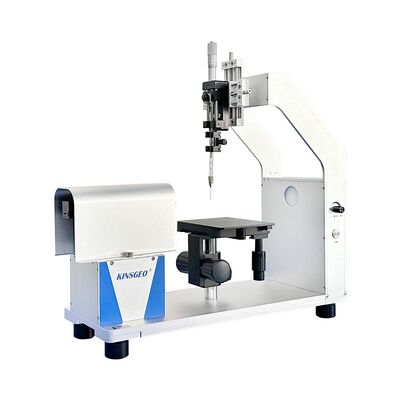

Large Image : Desktop Contact Angle Tester Water Drop Angle Measuring Machine For Film Glass Plastic

Product Details:

Place of Origin:	China
Brand Name:	KEJIAN
Certification:	ISO,CE and etc.
Model Number:	KJ-625

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate
Packaging Details:	Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time:	25 working days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	200 sets per month

Contact Now

Detailed Product Description

Model:	KJ-625	Mainframe Dimensions:	360 Mm (width) * 550 Mm * 450 Mm (long) (high)
Working Mesa Size::	120 Mm * 150 Mm	Largest Sample Size:	10 Inches
Lens Angle:	Straight Forward	Illuminant:	Adjustable Single Wavelength Industrial-grade LED Light
Power:	1&,AC220V,5A	Warranty:	12 Months
Contact Angle Measurement Range:	0-180°	Contact Angle Measurement Accuracy:	±0.10°

KJ-625 Contact angle goniometer/Contact angle meter/Contact angle measuring instrument

Desktop Contact Angle Tester Water Drop Angle Measuring Machine For Film Glass Plastic 0

The KJ-625 optical contact angle tester is a professional device used for measuring the wetting properties of solid surfaces. It is easy to operate, quick to test, and has high sensitivity. Through contact angle measurement, it can indirectly obtain data on the surface energy of solids and the surface tension of liquids. It is widely used in the surface performance testing and research of multiple industries, providing precise and reliable technical support for product quality control and material development, and helping to enhance product performance and competitiveness.

Contact angle measurement range	0-180°
Contact angle measurement accuracy	±0.10°
High-precision droplet dispensing system	Differential head + blue-core syringe; Droplet dispensing accuracy 0.5 μl
Mainframe dimensions	360mm (width) × 550mm (length) × 450mm (height)
Mainframe net weight	11KG
Workbench dimensions	120mm×150mm
Workbench movement range	Up and down 50mm; Left and right 50mm; Front and back 30mm
Maximum sample table size	10 inches
Injection head movement range	Up and down 100mm; Left and right 100mm
Industrial lens movement range	Front and back 180mm (fine-tuning 3mm)
Industrial lens	0.7X - 4.5X high-definition continuous variable magnification microscope
CCD	Industrial-grade chip; 20 frames per second
Lens angle	Horizontal view
Light source	Adjustable single-wavelength industrial-grade LED
Power supply and power	220V / 60HZ
