Single Column Electronic Tensile Testing Machine for Plastic Rubber

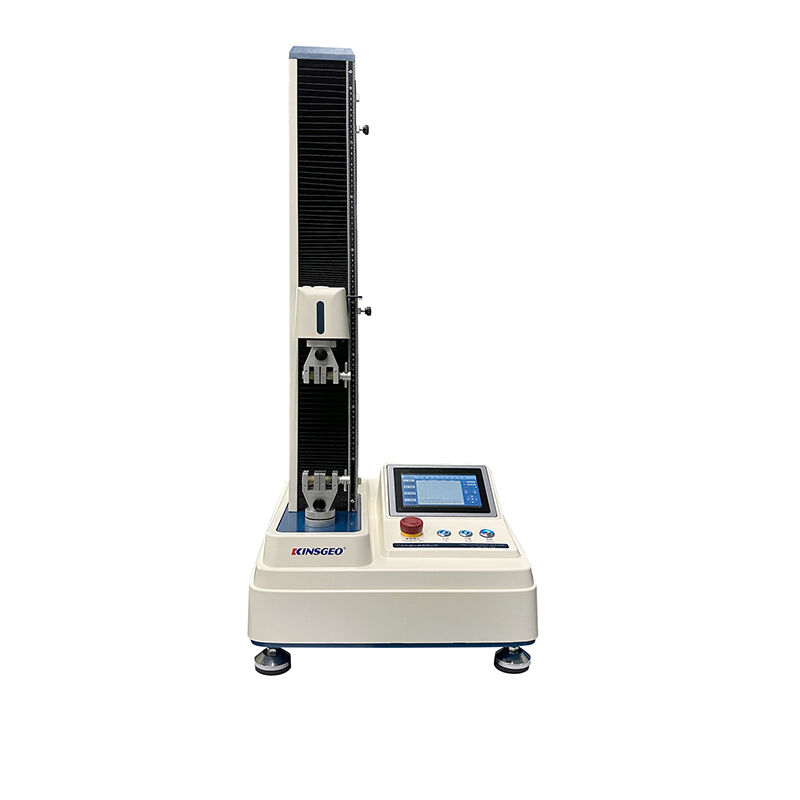

Large Image : Single Column Electronic Tensile Testing Machine for Plastic Rubber

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1065

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/4500/SET
Delivery Time:	15 work days
Payment Terms:	T/T,D/A
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Power:	AC220V 50Hz	Usage:	Universal Tensile Tester
Product Name:	Computer Control Single Column Universal Testing Machine	Power Supply:	Can Be Customized
Application:	Universal Tester	Standard:	BS.EN.ASTM
Motor:	Panasonic Servo Motor	Warranty:	1 Year
Accuracy:	+/-0.5%	Name:	Electronic Universal Testing Machine
Capacity:	20	Stroke:	650mm(excluding Clamp)
Resolution:	1/250	Tester Resolution:	Constant The Resolution
Operation:	Computer Windows Operation

Uses:

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

Design standard:

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7

Character:

1 That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

2 Have steady performace, high accuracy, powerful software function and easy operation.

3 Use the USA high-precision load cell.

Design Standards	ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7
Model	KJ-1065A-N
Capacity	5, 10, 20,50,100kg (optional)
Stroke	650mm
Speed Range	0.1-500mm/min adjustable, constant speed, 300mm/min
Test Space	120mm MAX
Accuracy	±0.5%
Resolution	1/500,000
Motor	Adjustable speed motor
Display	Force and elongation display
Dimensions (W×D×H)	50×50×120cm
Optional Accessories	Stretcher, air clamp
Weight	60kg
Power	1PH, AC220V, 50/60Hz

Product Images
